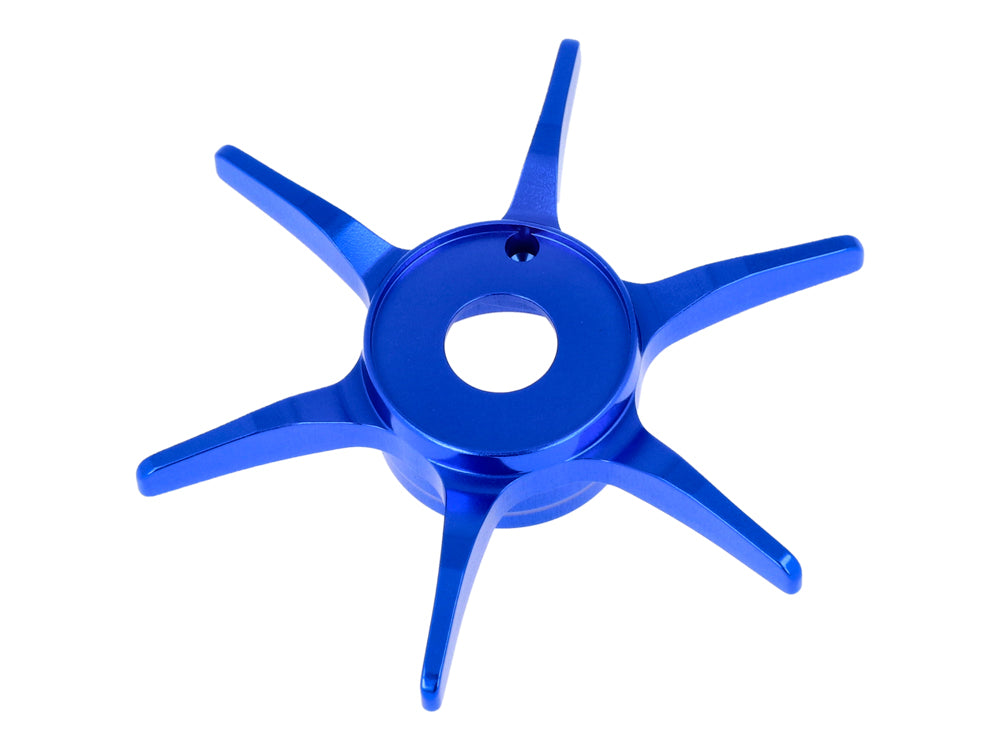

SD-20MT Star Drag for 20 Metanium

SD-20MT (Left and right handles, corresponding to each gear ratio)


Description

Avail Original Star Drag for SHIMANO 20 Metanium.
It is a shape that supports not only genuine handles but also offset handles LT, STi2, and STi2.5.
The genuine star drag is made of resin, but the texture is improved by using aluminum alloy.

The arm is designed to be longer than the genuine product, and the distance between the tips of the adjacent arms is close, so it is easier to wind up the thread dandruff with the middle finger while palming.
The weight will increase, but the function has been improved.

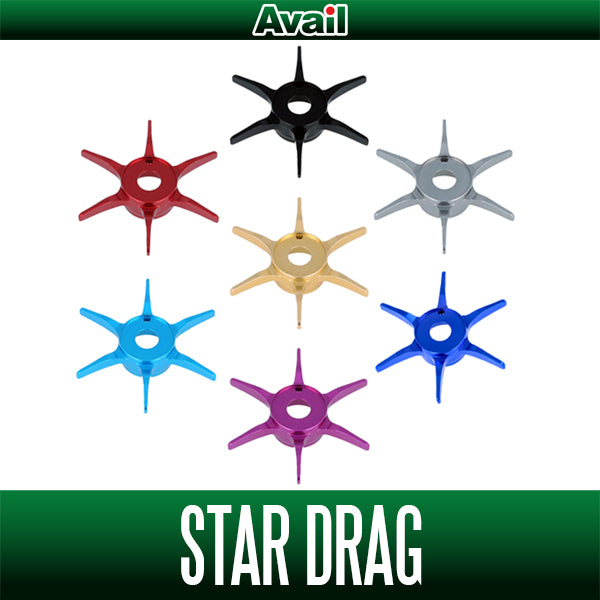

Color

SD-20MT


BLACK


GUNMETAL


RED


CHAMPAGNE GOLD

Blue


SKY BLUE


PURPLE (ROYAL PURPLE)



Spec

Basic Specifications

Material
Aluminum alloy

Weight
20 Metanium:7.0g
Genuine Star Drag:3.7g

Compatibility
20 Metanium
Compatible with left and right handles and models with each gear ratio


Instructions

Please refer to the following for the mounting method.


Remove the retainer and handle nut, and remove the handle.


Remove the genuine star drag.
Remove the sound output pin and sound output spring from there, and transplant it to SD-SCPXT.
I think it is better to transplant the star drag sound output board after installing the star drag.


Make sure that the star drag sound output plate is firmly inserted in the square hole of the main gear shaft before installing.


It is completed by reassembling the handle.
After installation, check if it works properly.
Make sure that there is a sound when tightening and loosening, and that the strength of the drag has been adjusted.

Reel:11 Scorpion DC
