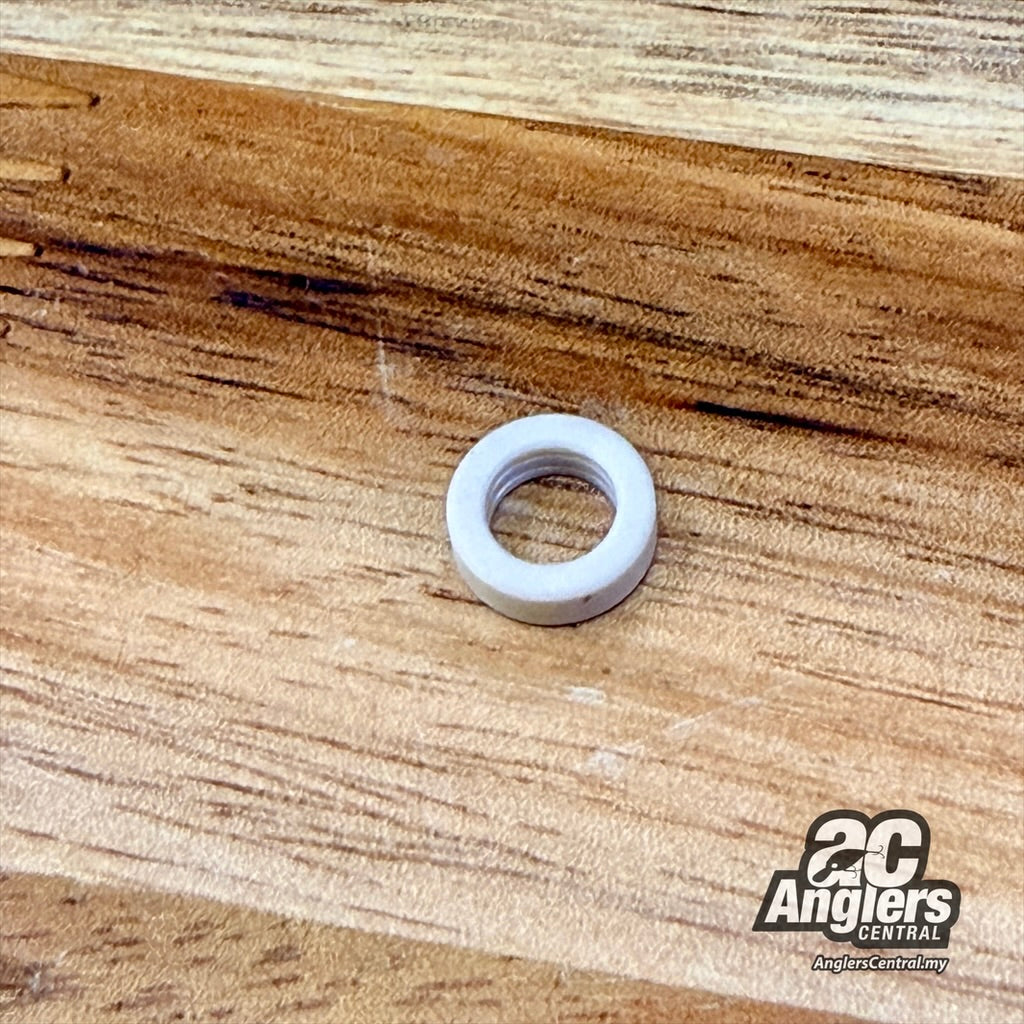

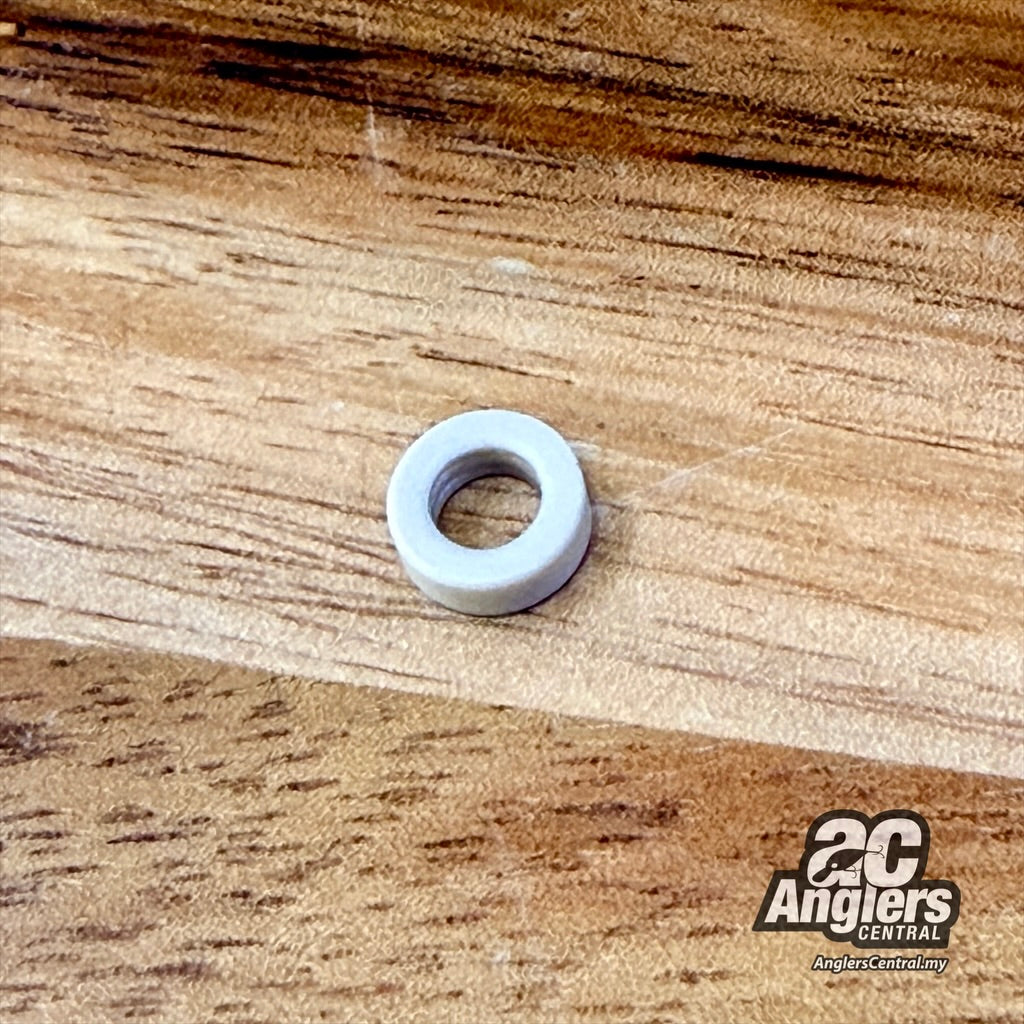

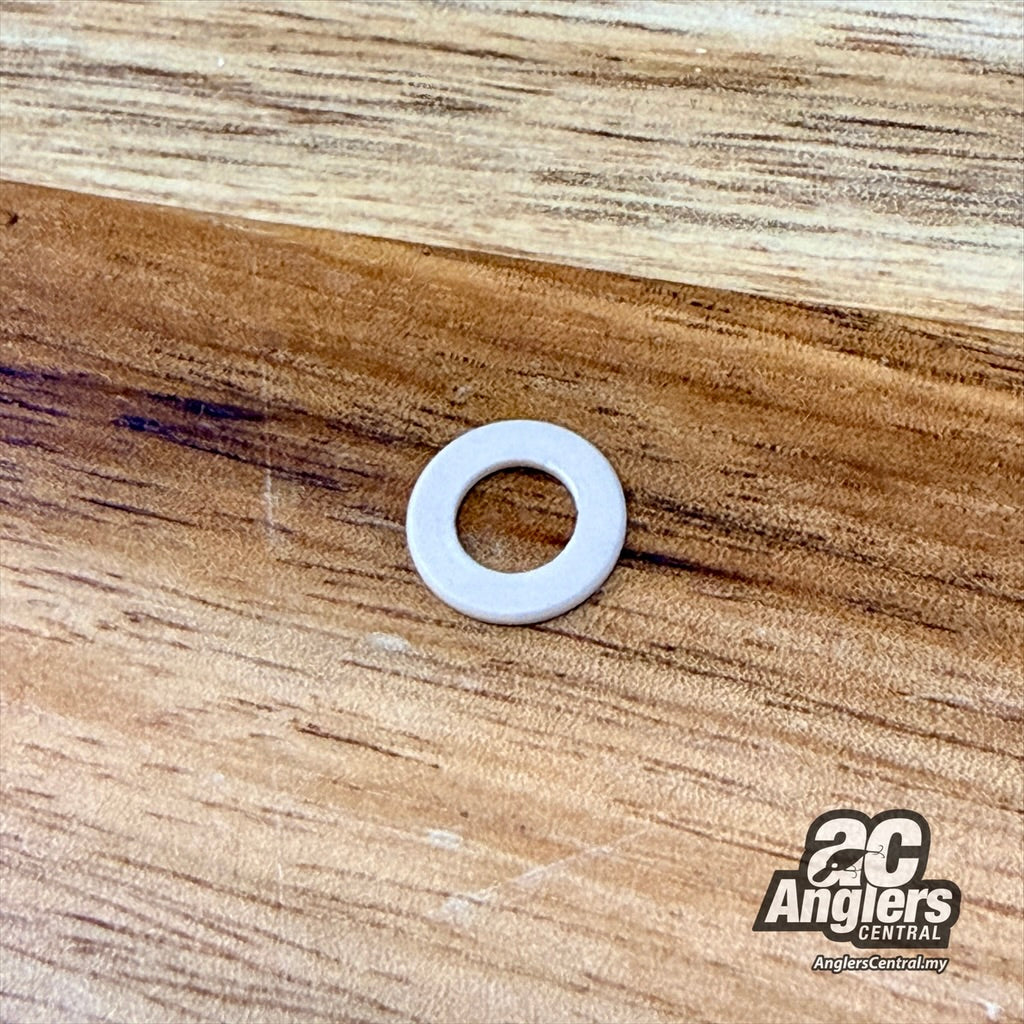

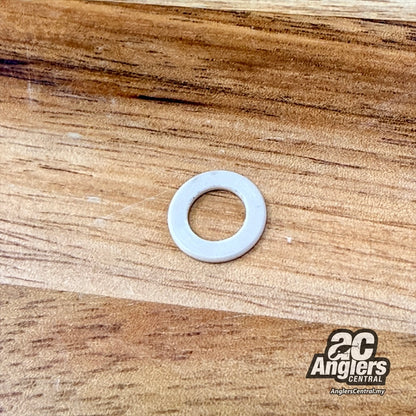

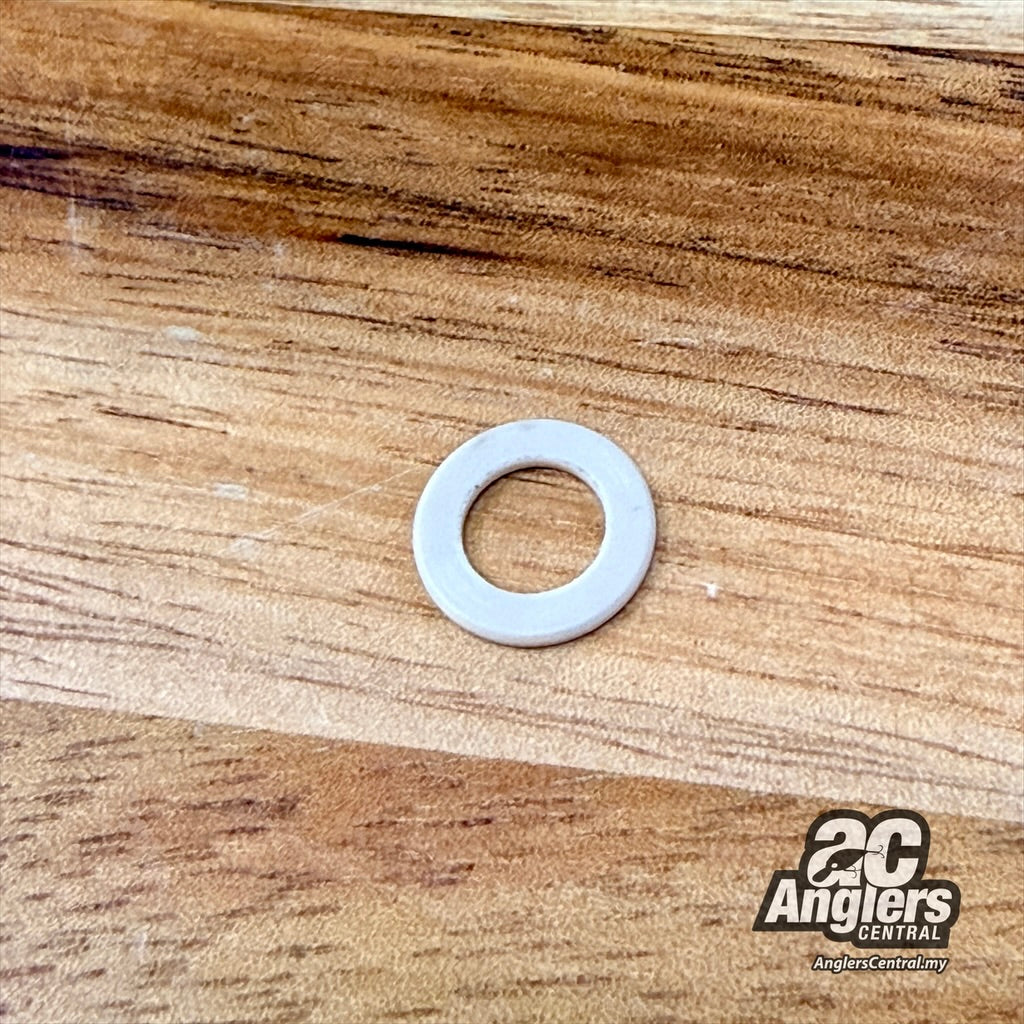

GMB Gojira Mecha Bushings

GMB - Gojira Mecha Bushings

Gojira Mecha Bushings - A PTFE infused bushing with exceptional wear/corrosion resistance, low friction, high strength, and thermal stability.

Strong & light composition: G-Cells + PTFE.

Performance, cycle-stress durability: Excellent in wear resistance, high mechanical strength, stiffness, and dimensional stability, low coefficient of friction.

Thermal & steam resistance: High service temp (up to 250°C continuously) and excellent resistance to hot water/steam.

Chemically inert: Highly resistant to a wide range of organic and inorganic liquids, including alcohols, fats, greases, oils. It is highly resistant to hot water, sea water, and steam. Biologically safe and biocompatible.

Recommended usage with a coating of #DeuthlonSports #SemiFluidGrease for high-load low-speed or #CastLube high-speed application.

Note (Pictured stacking sequence below) : Daiwa Magseal bearings sizes 5x9x4 can be replaced by combining 5x9x3 + 5x9x1. Magseal bearings sizes 6x10x4 can be replaced by combining 6x10x3 + 6x10x1.

Magseal Bearing = 5x9x3 + 5x9x1 or 6x10x3 + 6x10x1.


5x9x3 + 5x9x1 or 6x10x3 + 6x10x1 stacking combo.

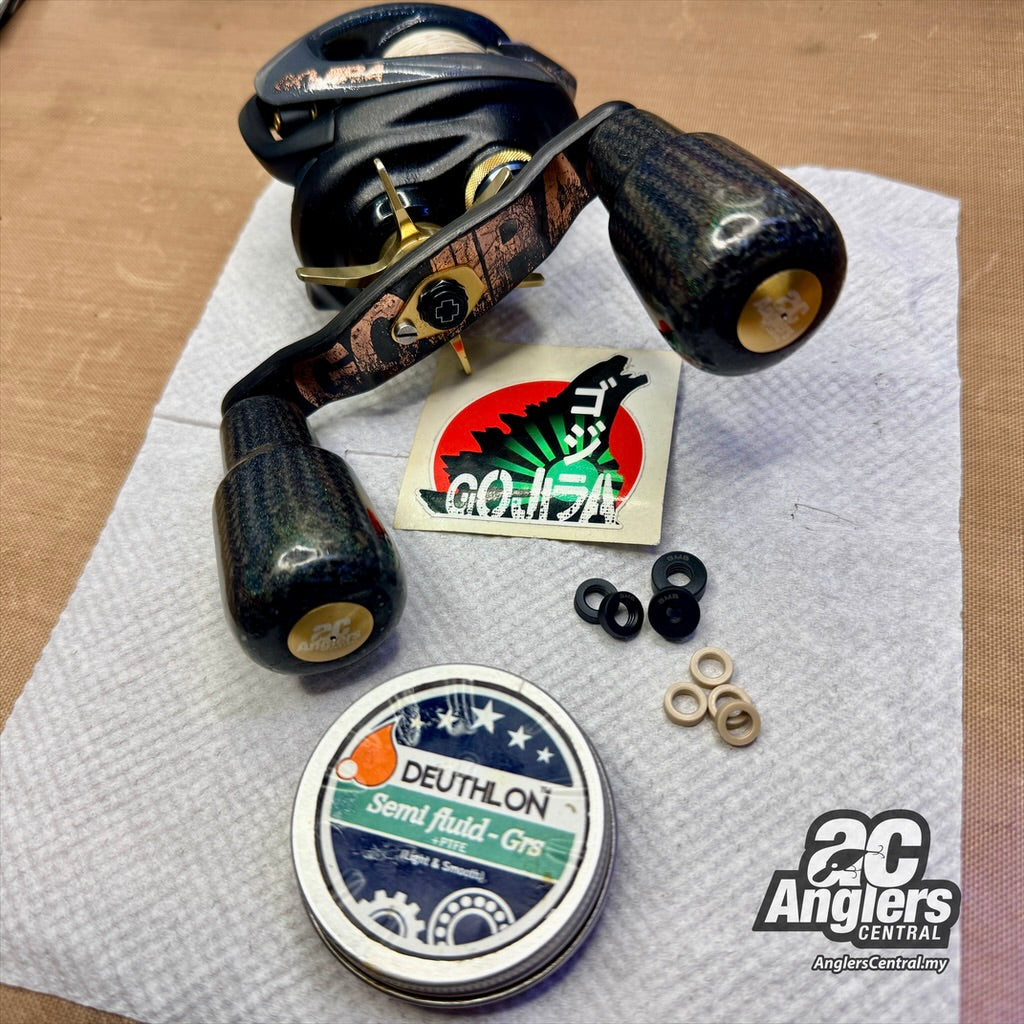

Magseal bearing stack assembly replacement using GMBearings & GMBushings.


GMBearings & GMBushing installed.
