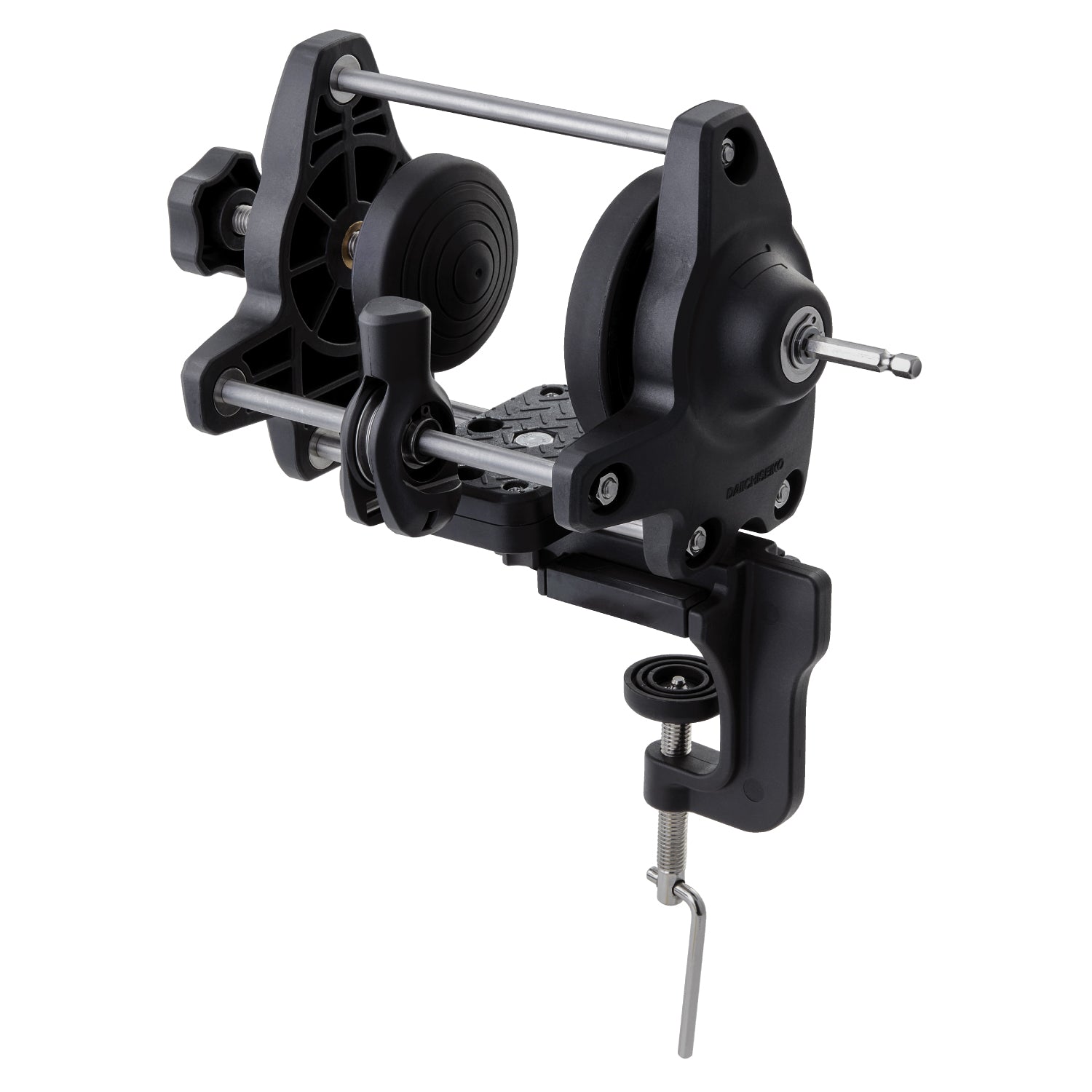

GichiGichi Winder SP

A winder that applies load only to the line without burdening the reel or the user, using the power of an electric screwdriver

SPEC

• Size: 265 mm × 135 mm × 255 mm
• Weight: 1466 g
• Maximum clamp mounting width: 43 mm
• Number of ball bearings: 4
• Compatible spool sizes: #4000 class to #30000 class
(Outer diameter: up to ⌀100 mm, spool skirt inner diameter: ⌀45 mm to ⌀90 mm)

• Compatible electric screwdrivers: 6.35 mm hexagonal shaft (sleeve type) and three-jaw drill (chuck type)
Requires stable output of at least 20 N·m torque (for a line tension of 10 kg).
*Due to high power consumption depending on usage conditions, we recommend using either a corded or a high-capacity (e.g., 6.0 Ah at 18 V) battery-powered electric screwdriver.

MADE IN CHINA

Feature 1

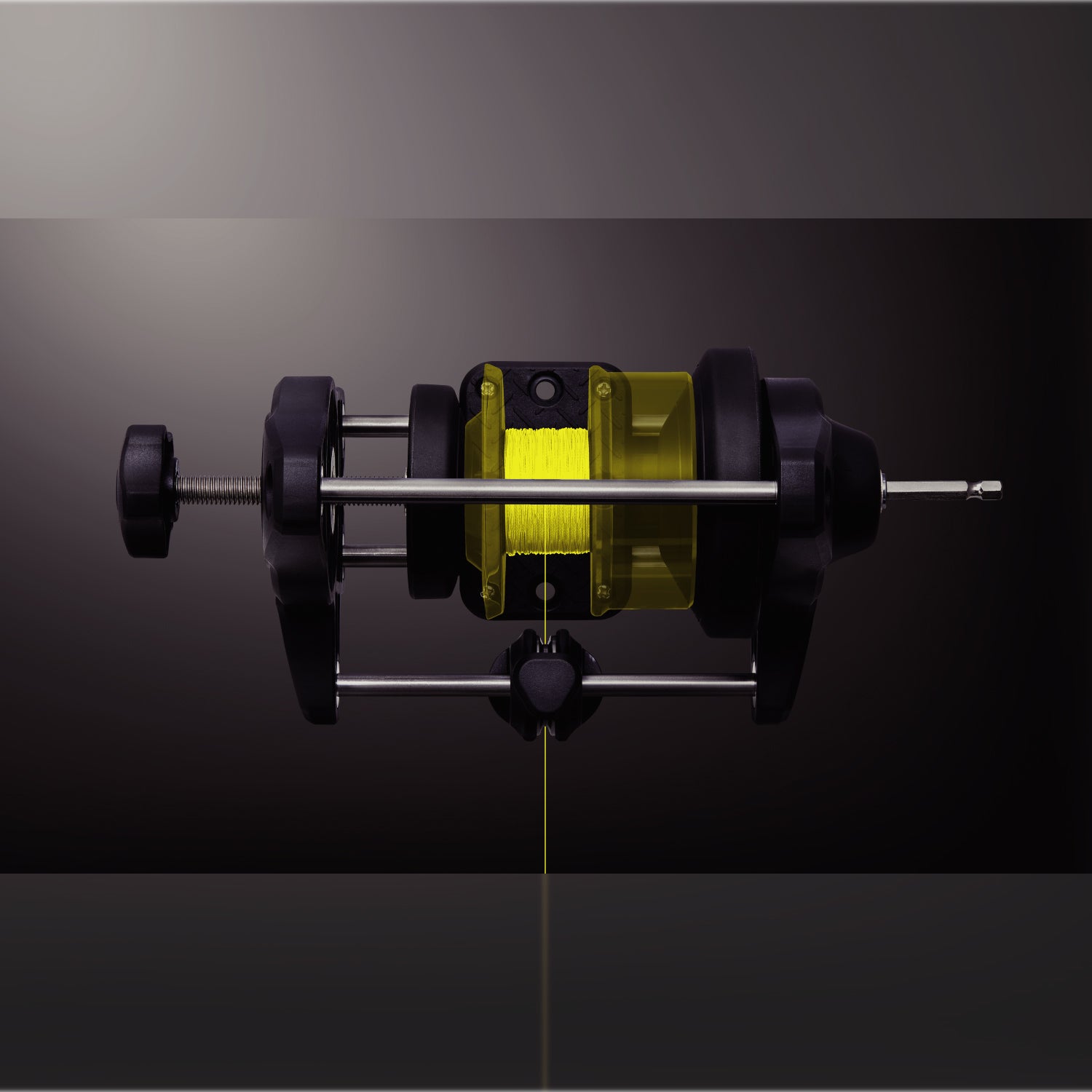

By removing and setting the spool from the large spinning reel, you can easily wind the line even under high load using the power of an electric screwdriver!

Feature 2

Smooth winding with guide rollers that move the shaft effortlessly.

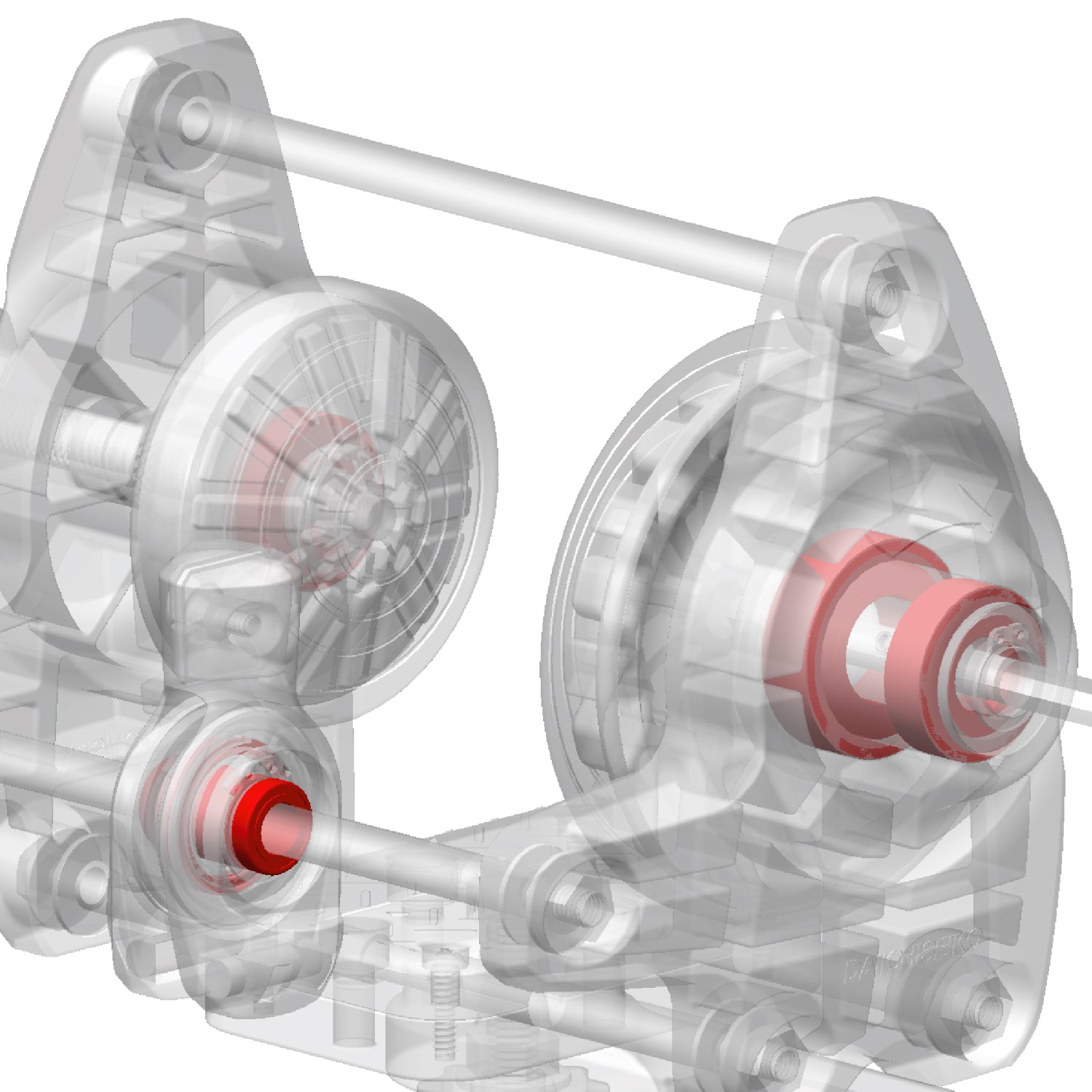

Guide rollers are equipped with ball bearings and linear bushings.
The body contains three ball bearings.

Feature 3

A high-rigidity body made of reinforced plastic combined with a stainless-steel shaft.

Feature 4

Rubber material is used at the contact points with the spinning reel spool to prevent scratches and slippage.

Feature 5

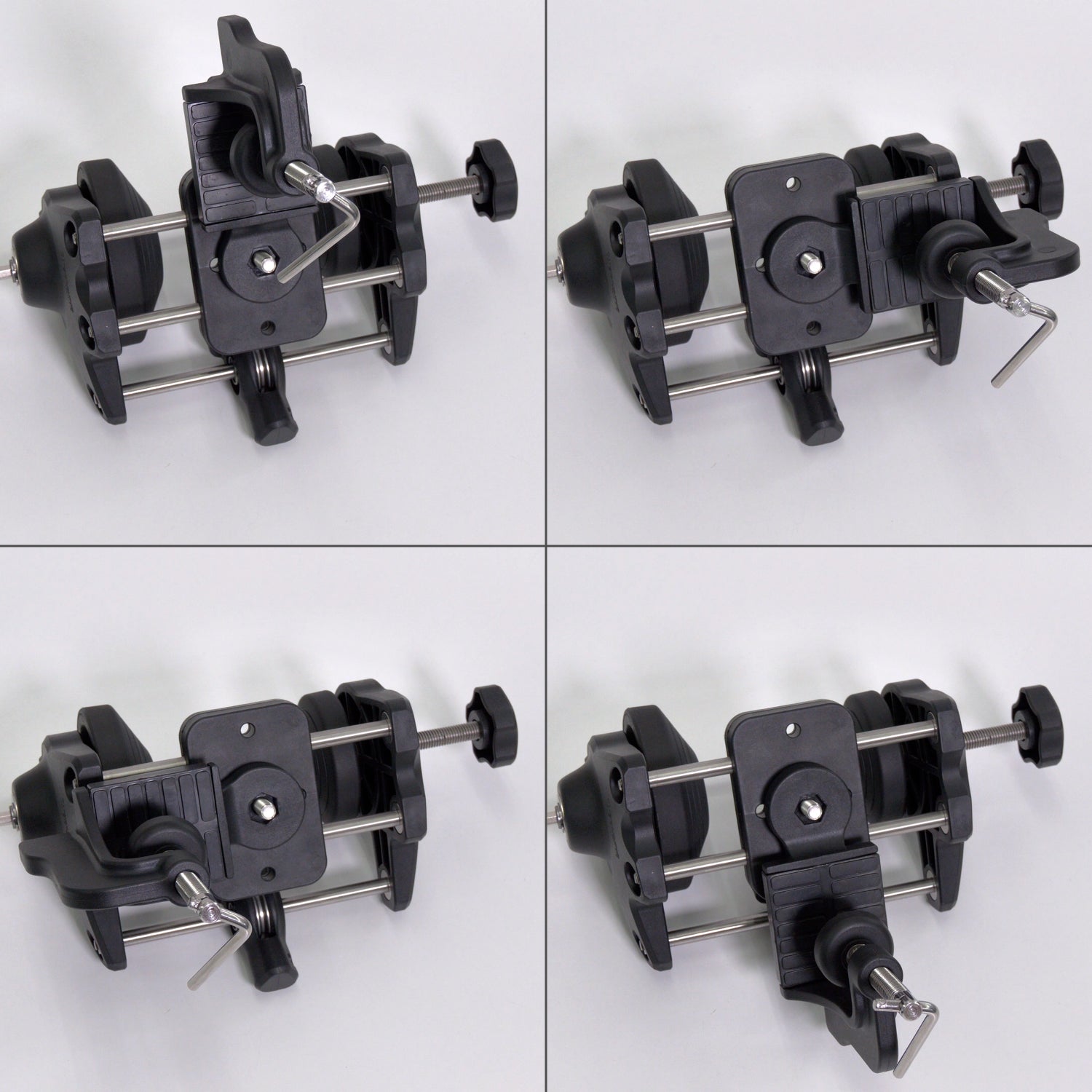

Easily clamp it to a table or other surfaces using a clamp that is adjustable in four directions!

Feature 6

The clamp can be removed for mounting on wood using screws (compatible with ⌀6 mm screws).

Usage 1

Secure the GICHIGICHI WINDER SP to a table or similar surface using the clamp.

For usage instructions, watch the video here

Usage 2

Align the spool removed from the spinning reel with the rotation plate and rotational center of the GICHIGICHI WINDER SP, and attach the spool.
Ensure the spool rotates with minimal wobble and is securely fixed.

Usage 3

Pass the line under the guide shaft and wind it over the spinning reel spool from above.

Usage 4

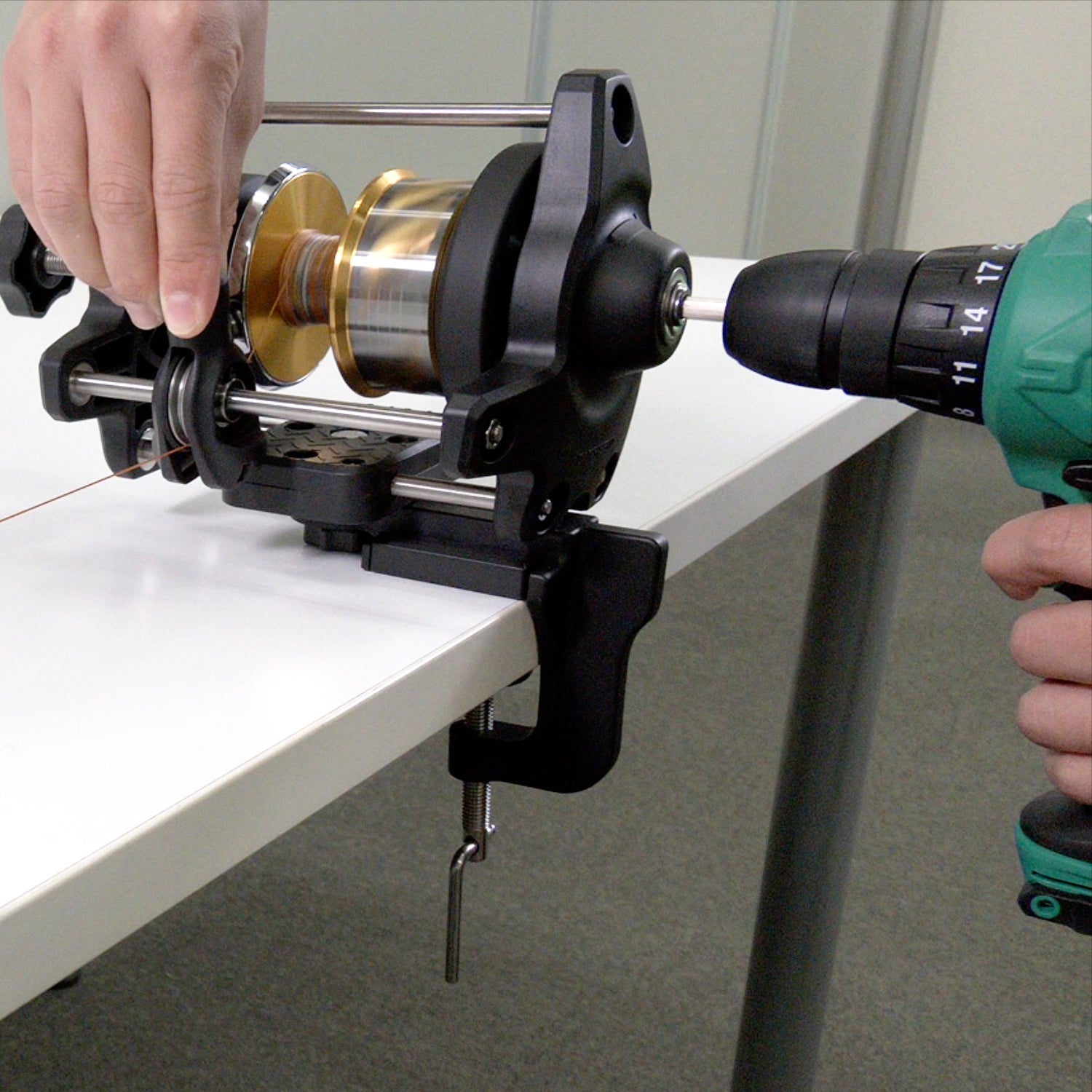

Adjust the electric screwdriver’s rotation direction to match the arrow on the unit and set it up.

Usage 5

Set the line on the guide roller, gradually increase the electric screwdriver’s rotation, and wind the line while guiding it with the roller.

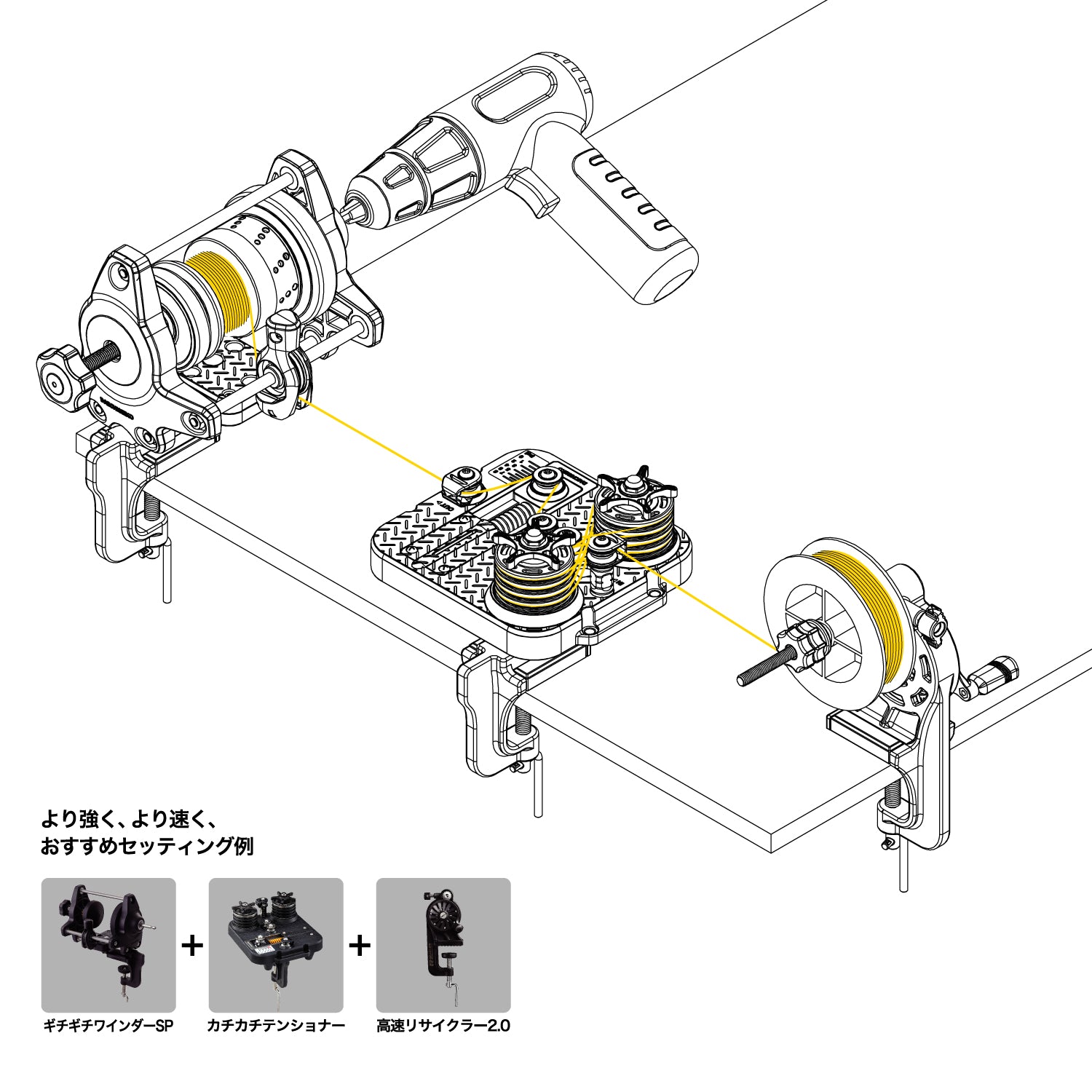

Recommended Setup Examples

Recommended settings ensuring more strength and speed
[High-Speed KACHI KACHI and GICHIGICHI] Setup Example

GICHIGICHI WINDER SP + KACHI KACHI TENSIONER + Kousoku Recycler 2.0

Cautions

• Do not touch the spool or line during use, as it may cause injuries.
• Avoid any abrupt actions, such as sudden rotations, as they may lead to line troubles or unexpected injuries.
• Do not overtighten the spool mounting screws.
Over-tightening may cause deformation, scratches, or damage to the spool. Note that we do not provide warranties for issues arising with the spool.
• Some spools may not be compatible.
• Be cautious, as rubber marks may remain when attached to tables or similar surfaces.
• Clamp screws or spool mounting screws may loosen due to vibrations or operation.
Periodically check to ensure they are tightened.
• For metal parts, to prevent rust, wipe them with a dry cloth immediately after use, especially when exposed to moisture, then apply a thin layer of oil before storage.
• Do not use impact drivers.
• We do not provide warranties for any issues that may occur with the electric screwdriver when using this product.
