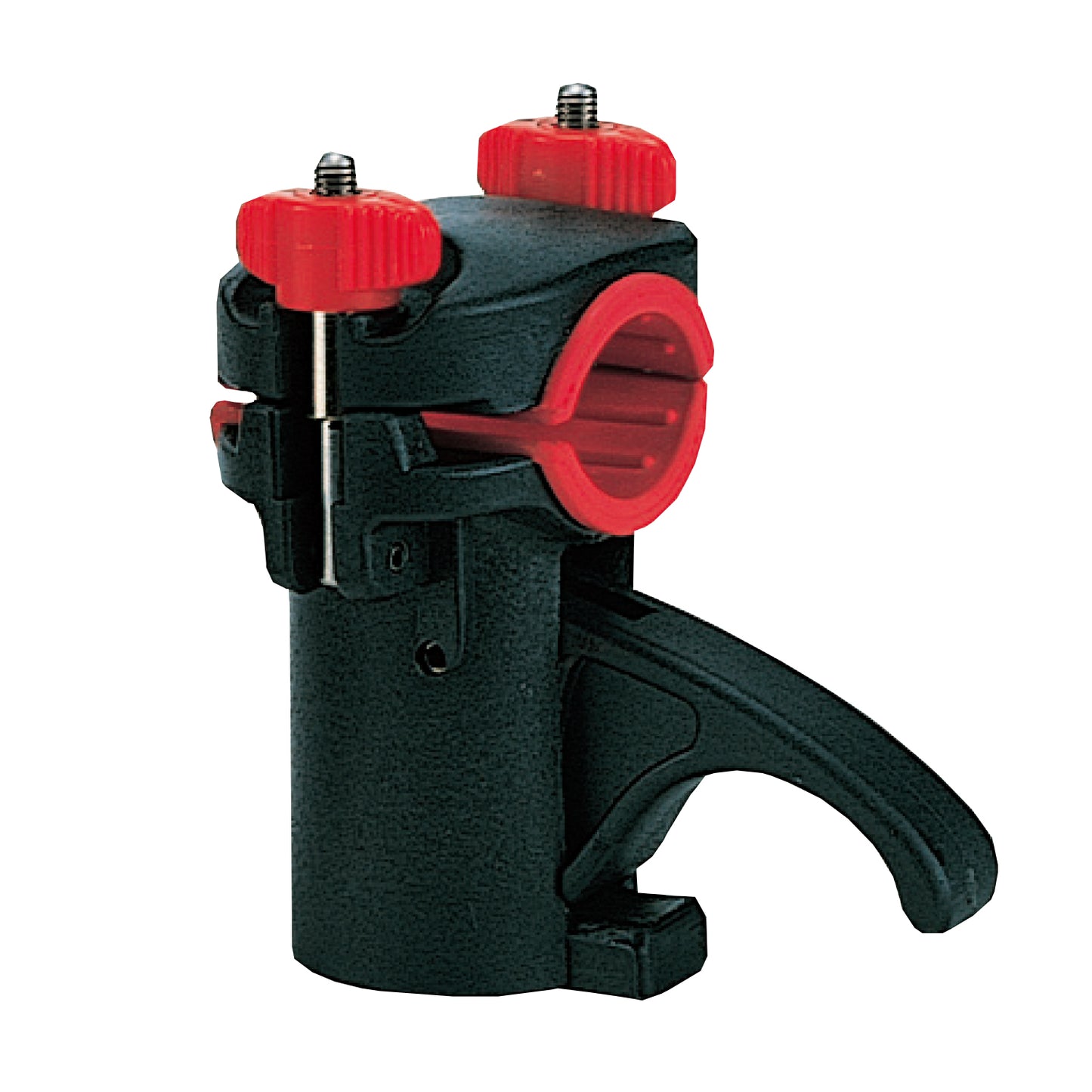

DX Support



Support mounting method
• Secure the support with the support screws to a position where the reel does not come in contact with the rod holder.
• Be sure to set the support so that the attachment/detachment lever will be on the front side. Mounting the lever on the opposite side will result in the falling of the rod.
• Tighten the left and right support screws evenly.
　Keep in mind that the plastic will be deformed if the left and right screws are tightened unevenly.
• The rod may break if the support screws are tightened in excess.

Notes on mounting support
• Press fit the support from above.
　Be sure to press fit the support securely until a crack sound is heard.

* Use the Hososaokei Adapter Set for thin rods.

SPEC

● OK to mount a rod with a diameter of 23 to 32 mm.
● Size: 90 × 95 × 60 mm
● Weight: 185 g (including Hososaokei Adapter Set)
● Accessory: Hososaokei Adapter Set
MADE IN JAPAN

Size comparison and compatible models

● Models compatible with Chibi Support: Chibi Lark,Chibi Lark Long,Chibi Lark Super Long, Chibi Lark-type S,Chibi Lark long-type S, Lark900, and Chibi Lark GB
● Models compatible with Mini Support: Mini Lark, Mini Lark-type S, Light Lark, Free Lark, One-touch Lark Mini, and Lark 1700
● Models compatible with DX Support: High Lark16,High Lark18,High Lark16DX,High Lark18DX, Super Lark,Super Lark Long, Shakuri Lark, Shakuri Lark Long, One-touch Lark DX, Lark300, Lark1800, Lark2000, Lark2200, Lark2500, and Lark Piton
● Model compatible with Ultra Saikyo Support: Ultra Saikyo Lark 2
