HYPERDRIVE DESIGN
Aiming to maintain high initial performance for a long time, this next-generation design concept for baitcasting (double-axis) reels significantly raises the bar on all basic performance. The Hyper Drive design is comprised of up to four technologies. Hyper Drive Digigear, which maintains smooth rotation for a long time, is a prerequisite, and Hyper Double Support assists the gear drive for strong, light reeling. Hyper Armed Housing provides strong support for the internal structure, making it less likely to bend or warp. Hyper Tough Clutch with an insulated structure continues to operate even in harsh locations, dramatically reducing adhesion caused by salt buildup. The synergistic effect of these features ensures consistent performance in any field.
HYPERDRIVE DIGIGEAR
A newly designed gear system that pursues sustained, strong and smooth rotation. By increasing the meshing rate without reducing the gear tooth module (size), which directly affects durability, DAIWA's proprietary technology ensures that initial smoothness is maintained for a long time.
HYPER DOUBLE SUPPORT
A drive support system that achieves sustained smoothness and strong, light reeling. Both ends of the pinion gear are supported with high precision by two ball bearings, which prevents attenuation of input from the handle and enables powerful, light reeling even under load.
HYPER ARMED HOUSING (FULL AL)
The housing system firmly supports the internal structure with high rigidity and precision, producing a precise reeling feel and power. The use of metal for the frame, which is the key element, is a necessary condition, and when combined with the side plate and set plate, it makes it possible to continue to demonstrate basic performance for an even longer period of time.
This series uses aluminum alloy for the frame, gear side plate, and dial side set plate, resulting in a full metal housing that is unparalleled in robustness and strength.
HYPER TOUGH CLUTCH
Not only does this clutch system offer crisp on/off performance that continues to slide thousands or even tens of thousands of times, it also has extremely few problems, even in high-salt waters. Its cutting-edge insulation structure has already resulted in a 99% reduction in the number of repairs required for seizures in harsh saltwater environments compared to our previous models.
SV-Concept
Super Versatile Concept
: Trouble-free fishing in any situation with any lure. This ultra-versatile brake concept allows trouble-free fishing at any distance, from close to long distances, with all types of lures, from light to medium to heavy. It can also be paired with a wide range of rods and lures, making it suitable for lure fishing for a wide variety of fish species in both saltwater and freshwater.
: Trouble-free fishing in any situation with any lure. This ultra-versatile brake concept allows trouble-free fishing at any distance, from close to long distances, with all types of lures, from light to medium to heavy. It can also be paired with a wide range of rods and lures, making it suitable for lure fishing for a wide variety of fish species in both saltwater and freshwater.
*SV100 only.
SV-BOOST
The greatest feature of the BOOST mechanism is the inductor rotor, which pops out in two stages.
SV BOOST maintains the trouble-free performance of the SV concept, while instantly applying optimal braking force in two stages according to the spool rotation speed, leading to that extra extension in the latter half of the cast. This system also excels in long-distance casting performance while maintaining comfortable performance. The start of the cast, which leads to the extension in the latter half of the cast, instantly exerts maximum braking force to control the initial backlash zone, and then reduces the braking force in two stages from the middle to the latter half to achieve that extra extension in the latter half.
SV BOOST maintains the trouble-free performance of the SV concept, while instantly applying optimal braking force in two stages according to the spool rotation speed, leading to that extra extension in the latter half of the cast. This system also excels in long-distance casting performance while maintaining comfortable performance. The start of the cast, which leads to the extension in the latter half of the cast, instantly exerts maximum braking force to control the initial backlash zone, and then reduces the braking force in two stages from the middle to the latter half to achieve that extra extension in the latter half.
*SV100 only.
LC-Concept
The Brake Concept offers excellent casting distance with a long casting time. It is especially suited to medium to heavyweight lures, and the sharper you swing the rod, the longer the casting distance. The sporty and refreshing casting feel
is also a major attraction of the LC Concept.
is also a major attraction of the LC Concept.
*Only 150.
MAG-Z BOOST
The BOOST SYSTEM maximizes the long-distance casting performance of the MAGFORCE-Z.
MAG-Z Boost is a distance-focused setting that maximizes the long-distance casting performance of the MAGFORCE-Z. Because the MAGFORCE-Z uses centrifugal force to activate the inductor rotor, it is not suitable for lightweight lures. However, it is ideal for long-distance casting of medium to heavy lures, and the more input you put into the lure, the greater the casting distance. And then there's the BOOST revolution. After avoiding the backlash zone, it instantly returns one step, achieving maximum casting distance with a smooth trajectory from the middle of the cast to just before it hits the water.
MAG-Z Boost is a distance-focused setting that maximizes the long-distance casting performance of the MAGFORCE-Z. Because the MAGFORCE-Z uses centrifugal force to activate the inductor rotor, it is not suitable for lightweight lures. However, it is ideal for long-distance casting of medium to heavy lures, and the more input you put into the lure, the greater the casting distance. And then there's the BOOST revolution. After avoiding the backlash zone, it instantly returns one step, achieving maximum casting distance with a smooth trajectory from the middle of the cast to just before it hits the water.
*Only 150.
ATD
The ATD operates smoothly and continues to work smoothly in response to the pull of the fish. It pursues smooth start-up and tracking, allowing you to concentrate on fighting the fish without worrying about drag settings.
ZERO SHAFT
The spool is supported only by the bottom bracket. The shaftless design eliminates excess resistance, resulting in ideal spool rotation.
In other words, it is the key to a high-output engine that prioritizes casting performance.
In other words, it is the key to a high-output engine that prioritizes casting performance.
Zero Adjuster
First, adjust the "zero adjuster" and set the "spool backlash to zero." Thanks to the evolution of the magnetic brake, it is now possible to control all lures with just the mag dial. The
"zero adjuster" is a mechanism that, by adjusting it to the "zero setting" before starting fishing, prevents malfunctions during fishing and allows you to enjoy fishing comfortably.
*The "spool backlash to zero" setting is the setting that leaves a slight backlash (about 0.2 mm) and does not push the spool.
"zero adjuster" is a mechanism that, by adjusting it to the "zero setting" before starting fishing, prevents malfunctions during fishing and allows you to enjoy fishing comfortably.
*The "spool backlash to zero" setting is the setting that leaves a slight backlash (about 0.2 mm) and does not push the spool.
Product Details
■Improved rotational durability performance
Compared to the 18RYOGA, there is less deterioration in rotational performance even with high loads or accumulated loads over time.
The 26RYOGA's "HYPERDRIVE DIGIGEAR" achieves smooth rotation and high levels of gear durability.
Left: 18RYOGA's "HYPERMESH GEAR" made of high-strength brass
Right: 26RYOGA's "HYPERDRIVE DIGIGEAR" made of high-strength brass
The 26RYOGA's "HYPERDRIVE DIGIGEAR" achieves smooth rotation and high levels of gear durability.
Left: 18RYOGA's "HYPERMESH GEAR" made of high-strength brass
Right: 26RYOGA's "HYPERDRIVE DIGIGEAR" made of high-strength brass
■High-precision, high-rigidity housing manufactured using machine-cut processes
"For reeling,
choose RYOGA." The appeal of this reel is its high-precision, high-rigidity housing, made using machine-cut methods, a feature that has been a focus of every RYOGA model. Combined with the Hyper Drive design, the reel offers a firm feel and smooth rotation, providing full support for anglers who are particular about their reeling style.
choose RYOGA." The appeal of this reel is its high-precision, high-rigidity housing, made using machine-cut methods, a feature that has been a focus of every RYOGA model. Combined with the Hyper Drive design, the reel offers a firm feel and smooth rotation, providing full support for anglers who are particular about their reeling style.
Newly designed spool (No. 150)
After extensive field testing, we have adopted a new narrow shape.
The angle at which the line is released is 3.4% shallower
, improving the feel of the line when casting. The optimal balance between spool diameter and width while maintaining sufficient line capacity has resulted in a smoother trajectory.
The angle at which the line is released is 3.4% shallower
, improving the feel of the line when casting. The optimal balance between spool diameter and width while maintaining sufficient line capacity has resulted in a smoother trajectory.
■2.0mm thick stainless steel reel foot
We focused on the thickness of the reel foot, which is just 0.5mm, changing it from the previous 1.5mm to 2.0mm.
This thoroughly eliminates rattle when casting, using high-load lures, or fighting.
Furthermore, the material has been changed from aluminum to stainless steel, ensuring the same strength as a round double-axis reel for saltwater fishing.
A design that does not compromise on even the smallest details achieves reliable rigidity.
This thoroughly eliminates rattle when casting, using high-load lures, or fighting.
Furthermore, the material has been changed from aluminum to stainless steel, ensuring the same strength as a round double-axis reel for saltwater fishing.
A design that does not compromise on even the smallest details achieves reliable rigidity.
Drag pull click
In pursuit of high drag performance to catch big fish, we aimed for the best drag performance in its class, not only maximum drag but also smooth operation that follows the pull of the fish.It
also features a drag pull click function.By sounding the drag pull, anglers are given a great advantage when the line system is at its limit in the event of a sudden charge by a fish.
also features a drag pull click function.By sounding the drag pull, anglers are given a great advantage when the line system is at its limit in the event of a sudden charge by a fish.
■Ball bearing mounting locations
Pinion: 2BB (CRBB)
Gear shaft ends: 2BB (CRBB)
Spool ends: 2BB (CRBB)
Handle knob: 2BB (1SUS BB per knob)
Pinion: 2BB (CRBB)
Gear shaft ends: 2BB (CRBB)
Spool ends: 2BB (CRBB)
Handle knob: 2BB (1SUS BB per knob)
■Compatible custom parts
Handle knob: S-size knob Compatible
handle: Various RCSB handles
RCSB BF handle set / RCSB crank handle set / RCSB carbon crank handle / 23RCSB 100mm carbon crank handle / RCSB ESD 100mm crank handle
Handle knob: S-size knob Compatible
handle: Various RCSB handles
RCSB BF handle set / RCSB crank handle set / RCSB carbon crank handle / 23RCSB 100mm carbon crank handle / RCSB ESD 100mm crank handle
■Spool compatibility
100: Compatible with RCSB1000 spool system
150: Compatible with RCSB1500 spool system
100: Compatible with RCSB1000 spool system
150: Compatible with RCSB1500 spool system
Item Introduction
| item | explanation |
|---|---|

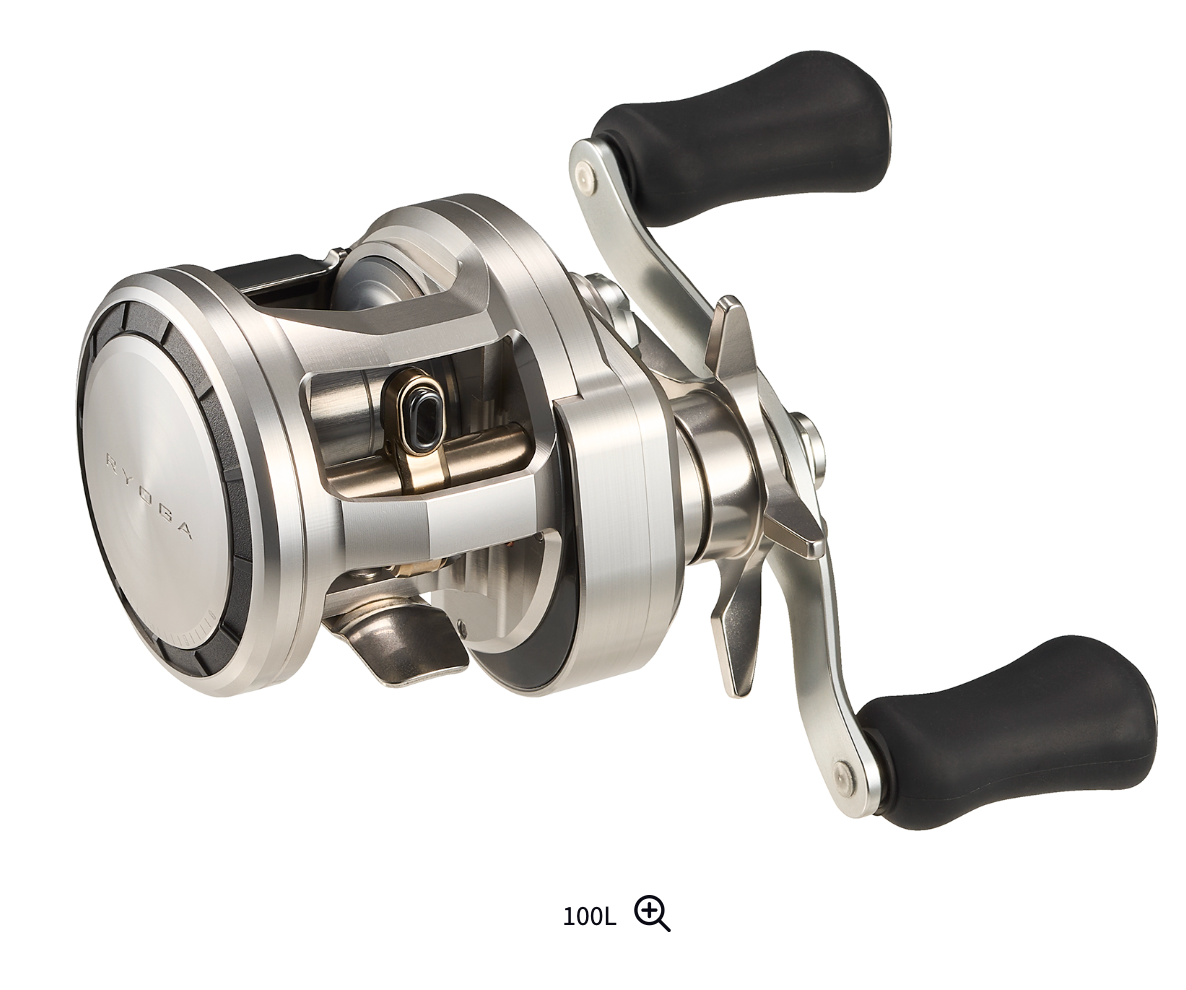

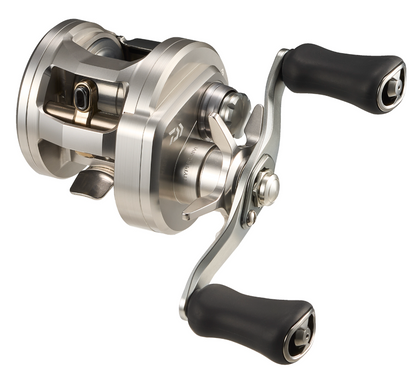

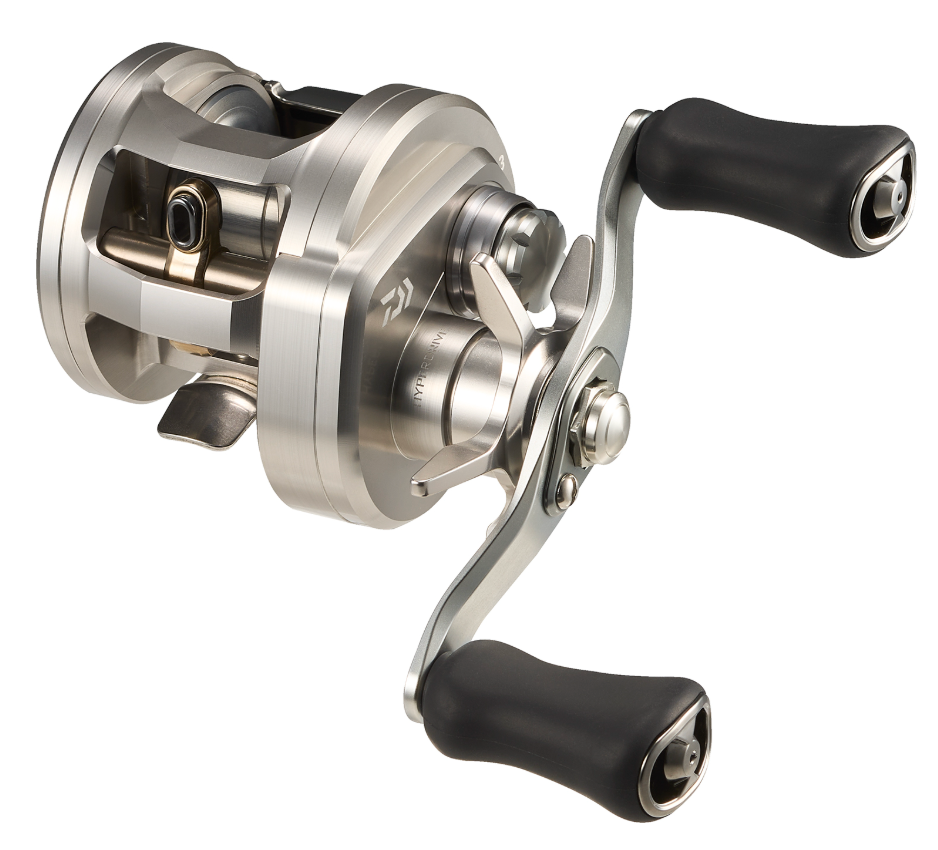

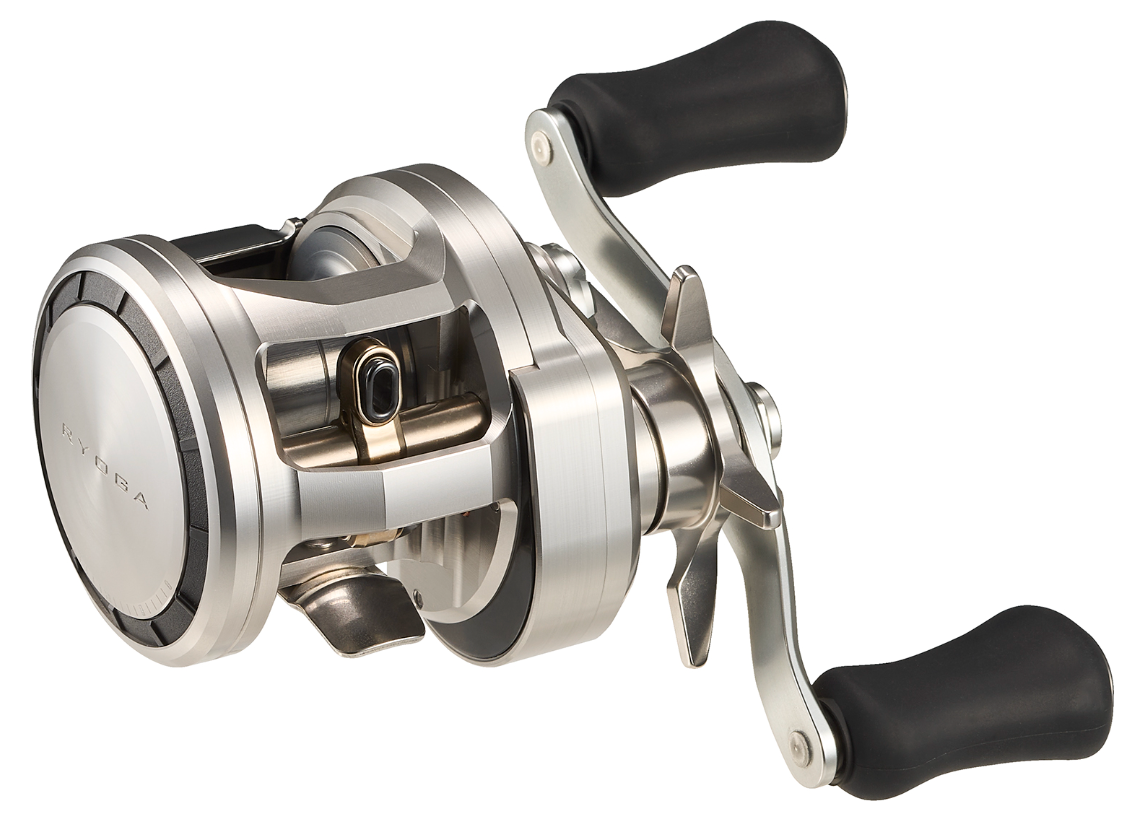

| SV100 |
The spool is made of G1 duralumin and features a 34mm diameter SV BOOST technology. It allows for effortless casting and long casting distances. Even with reeling lures that experience air resistance during casting, the SV concept allows for a low trajectory and precise approach. The BOOST SYSTEM also provides extended casting time. It fully supports reeling styles, from short to medium distances, to long-distance casting. It delivers optimal performance when using lures with relatively low pulling resistance, such as tiny cranks and 1/4oz spinnerbaits, or when fishing in shallow waters. Two gear ratios are available: 5.3 (56cm per handle rotation) and 6.3 (67cm per handle rotation). |

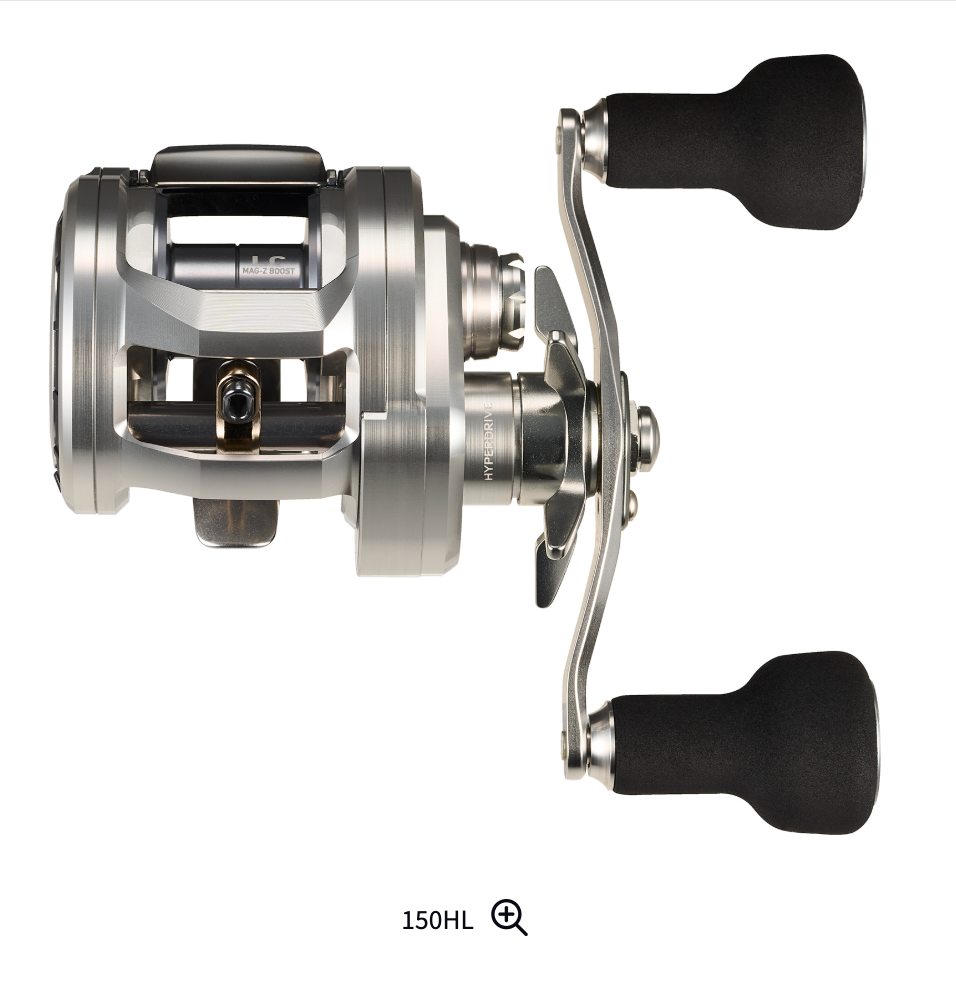

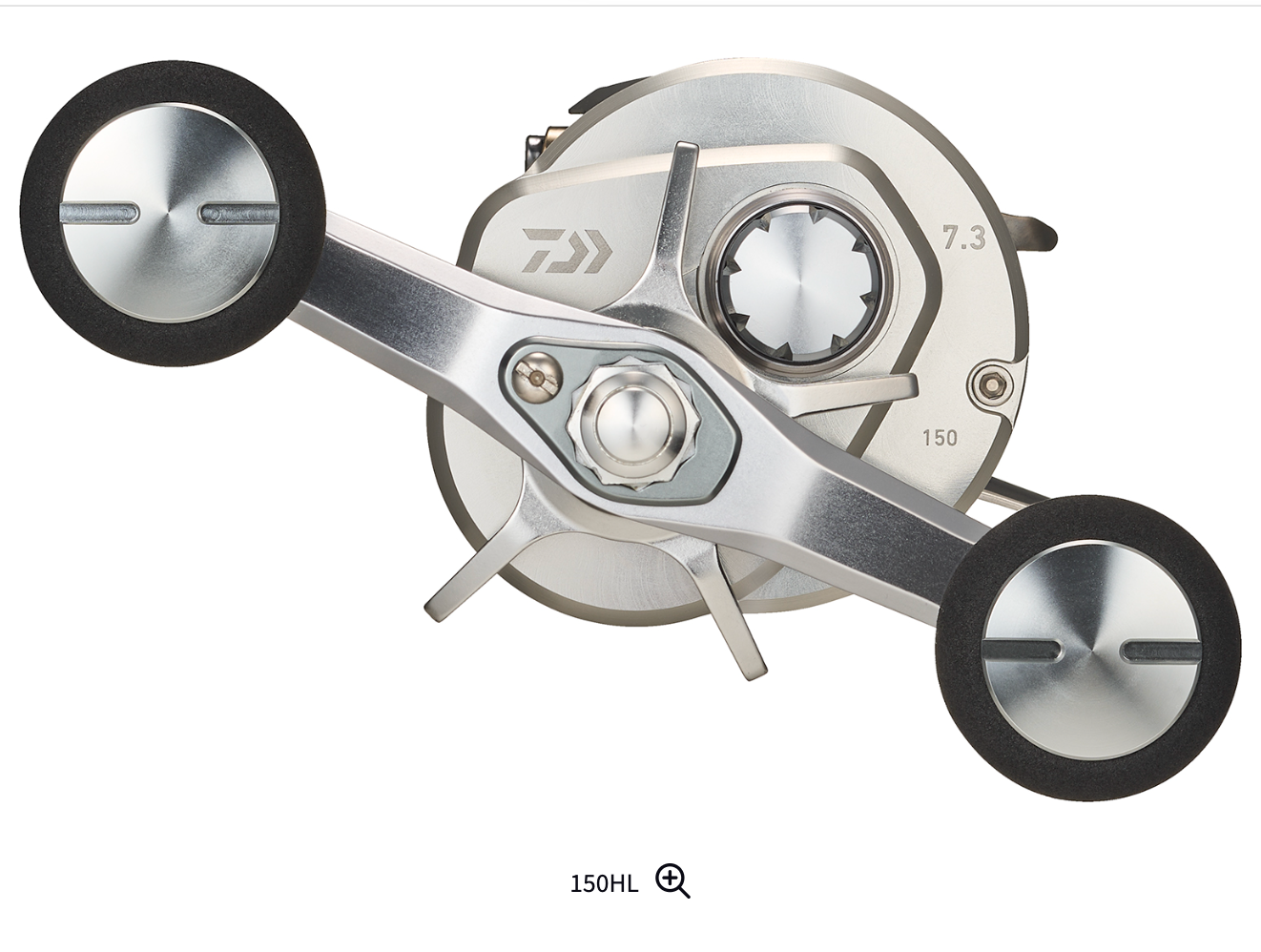

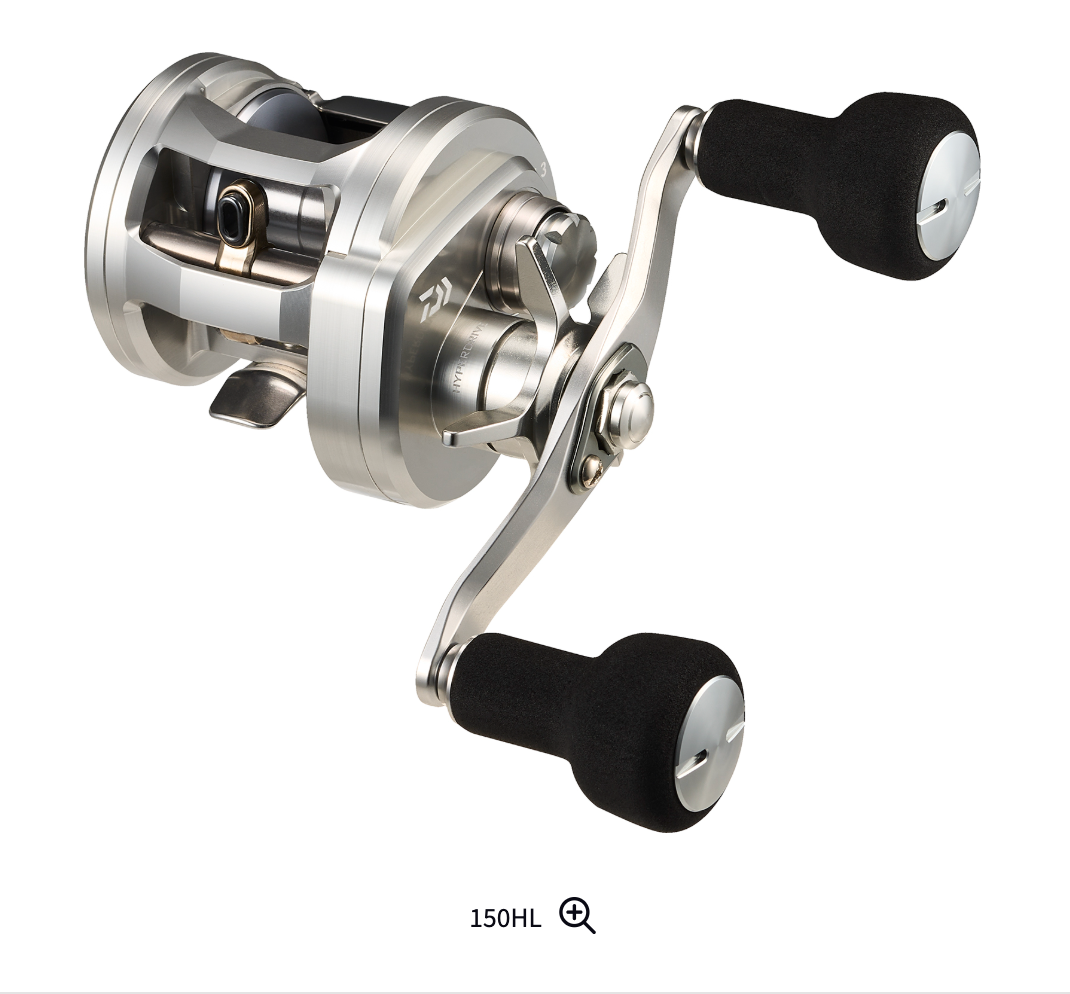

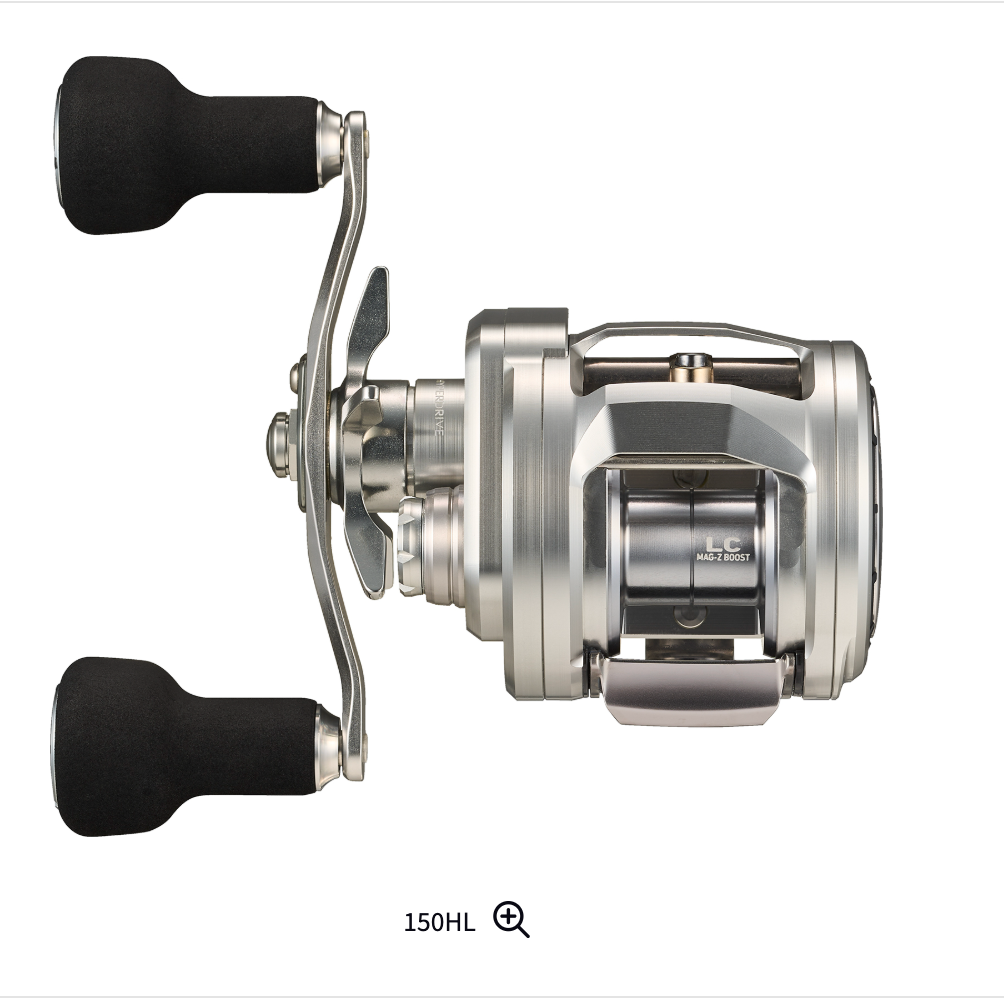

| 150 |
The spool is made of 36mm high-strength aluminum and features the MAG-Z BOOST technology. After extensive field testing, we selected high-strength aluminum. This rod delivers long-distance casting performance by ensuring the necessary inertia for carrying medium- to heavy-weight lures. The redesigned spool shape optimizes the line winding. These synergistic effects enable the smooth trajectory and exhilarating casting feel characteristic of the LC Concept. Two gear ratios are available: 5.3 (59cm per handle rotation) for deep cranks, magnum cranks, large flying lures, and even mid-water dead-walking and cranking big baits; and 7.3 (82cm per handle rotation) for deep-water fishing requiring a high gear ratio or for maneuverability with big baits. The heavyweight-oriented reeling style provides a comfortable feel. The 7.3 gear ratio (150H/HL) model is equipped with a 100mm long handle and Powerlite M medium knob. Special specifications support easy reeling even with reeling jerks and heavy loads. This rod meets the requirements of being compatible with thick lines (20lb nylon - 100m, PE No. 4 - 100m) to prevent the risk of breaking large lures when casting. Naturally, it also meets the needs of saltwater fishing. |
