We want to create a spinning reel that anglers will love and use for a long time. Not for a specific person, but for all anglers. To achieve this, we aimed for comfortable operability for all users and reliable rigidity that does not cause anxiety. The philosophy embodied in CERTATE has not changed even after 20 years. The
next-generation spinning reel design concept "Air Drive Design" installed in the new CERTATE is one of the achievements of CERTATE, which has continued to pursue comfortable operability. It is a design concept that aims to operate the lure at will, as anglers desire, and is composed of up to four technologies. The benefits of being fully equipped with this Air Drive Design are enormous. Light operability with optimal weight balance. Light rotation feel that gives you a sense of unity with the tackle. Winding sensitivity that allows you to feel even the slightest fish bites and changes in the flow. Significantly reduced frequency of line trouble. It is CERTATE's clear answer for modern anglers. The new drag ATD TYPE-L reduces the burden on the line and promises a safe and comfortable fight with high response and smooth start.
This operability cannot be obtained without solid rigidity. That is why CERTATE has consistently been committed to rigidity. The symbol of this is the "monocoque body" with a one-piece molded structure made of aluminum material. Daiwa's unique technology minimizes the body's deflection under high load, which was a weakness of conventional spinning reels, and achieves strong winding power. The engine plate that is screwed into it is also made of aluminum. In other words, the internal structure, which is the heart of the reel, is firmly supported by the full metal aluminum body. The drive gear built into it is given a special surface treatment that increases its hardness, reducing damage to the gear under high load. The main shaft that transmits the power to the front unit is made of SUS, which is even more rigid than aluminum, to maximize performance without power loss. Solid rigidity and comfortable operability. This consistent simplicity and robustness is the proof of the trust we have accumulated. The NEW CERTATE, now in its 20th year, has undergone a legitimate evolution, offering a new era of standard spinning reels for all anglers.
Daiwa

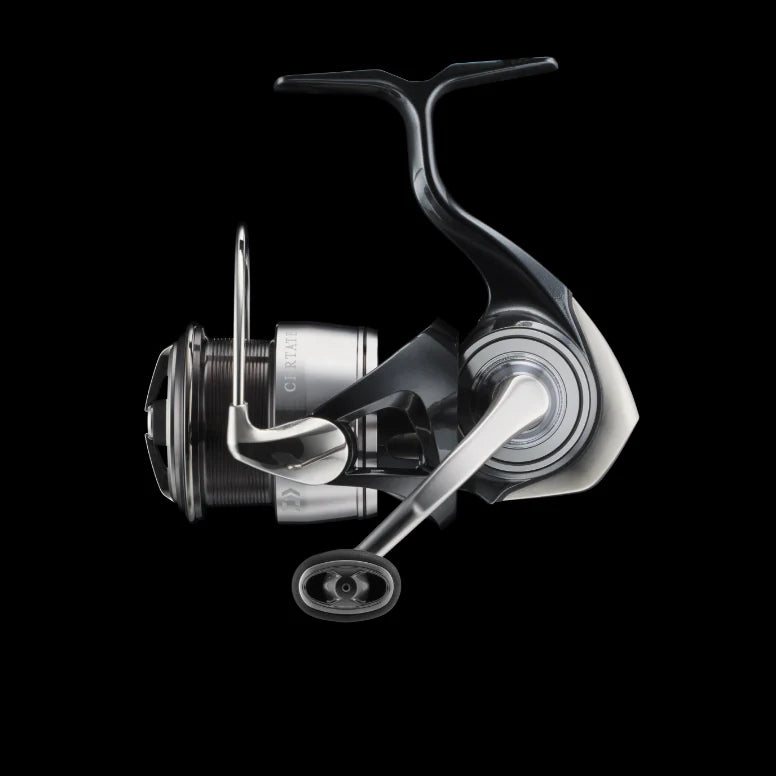

2024 Certate (G) FC LT 2500
2024 Certate (G) FC LT 2500
Regular price
MYR1,580.00
Regular price
MYR1,850.00
Sale price
MYR1,580.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Low stock
Couldn't load pickup availability
| item | Standard weight (g) | Winding length (cm/1 turn of handle) | Gear Ratio | Standard nylon winding amount (lb-m) | Standard winding amount of PE (No.-m) | Handle arm length (mm) | Bearings (ball/roller) | Maximum drag force (kg) | Handle knob specifications | Body Composition |
|---|---|---|---|---|---|---|---|---|---|---|
| 24 Certate FC LT2500 | 175 | 72 | 5.1 | 6-150 | 0.8-200 | 50 | 10/1 | 5 | HG-I | Full metal (aluminum) monocoque body |
Unwavering trust. The joy of resonating with your sensibilities.
Daiwa Technology
AIRDRIVE DESIGN
Air Drive Design is a next-generation spinning reel design concept that pursues the angler's desire to operate the lure as they wish. Air Drive Design is composed of up to four technologies. The prerequisite is the installation of an Air Drive Rotor that produces light winding and high-response rotation, a lightweight and trouble-free Air Drive Bail, a thin-walled Air Drive Spool that has been designed to reduce weight by removing unnecessary material to the limit, and an Air Drive Shaft that supports the main shaft with a high-precision collar and has a non-contact structure with the pinion gear, allowing for light winding with extremely little rotation noise even under high load. The synergistic effect of these and the improvement of the weight balance of the reel achieve a high level of operability.
*24CERTATE is equipped with AIRDRIVE ROTOR, AIRDRIVE BAIL, AIRDRIVE SPOOL, and AIRDRIVE SHAFT.
AIR DRIVE ROTOR
Using our unique theory, we have derived a new shape that looks as if it was cut out of a sphere, and by thoroughly removing unnecessary material from it, we have achieved a significant weight reduction while maintaining rigidity. This has dramatically improved the lightness of the reel, which leads to improved operability and sensitivity.
AIR DRIVE BAIL
The Air Veil has adopted a hollow pipe structure that provides rigidity and light weight, but in order to achieve further weight reduction, the diameter has been made smaller while maintaining the necessary strength. The veil angle is set to the optimum angle to allow the line to transition more smoothly from the veil to the line roller. This has made it even lighter and less troublesome.
AIR DRIVE SPOOL
A thin-walled design that eliminates unnecessary material and achieves weight reduction. The thin-walled design of the spool skirt and the hollowing out of the inside of the spool are the key to weight reduction. The lighter spool improves ease of winding and casting. In addition, the drag sound mechanism with low operating resistance improves response when the drag is activated.
AIR DRIVE SHAFT
The system uses a non-contact structure between the main shaft and pinion, a linear shaft that eliminates friction, and supports both ends of the pinion with bottom brackets, maximizing the power input to generate torque. Furthermore, the main shaft is supported by a high-precision collar, which reduces rotational noise to the maximum.
MONOCOQUE BODY
Strong and durable technology, monocoque body. Conventional spinning reels generally support both ends of the drive gear with the body and body cover, and then secure them with several screws. In order to further improve precision and rigidity, the monocoque body eliminates the body cover and secures the gear by screwing a high-precision plate directly into the body. This improves the support precision of the gear, and also improves rigidity and airtightness. Furthermore, by utilizing the space previously taken up by the screw, we have succeeded in expanding the size of the drive gear to its maximum. The monocoque body means MONO (one) - COQUE (shell). The completely new shape, which symbolizes the strength of a single shell, breaks the conventional wisdom of reel structure.
TOUGH DIGIGEAR
To survive in harsh environments, a reel needs a strong heart. "Tough Digigear" keeps the rotation smooth for longer.
ATD TYPE-L
The ATD operates smoothly and continues to work smoothly in response to the pull of the fish. The ATD TYPE-L has improved initial response. It pursues smooth start and tracking, allowing you to concentrate on the fight without worrying about the drag setting.
*The 5000 model uses carbon ATD with high durability.
LC-ABS (Long Cast ABS)
While keeping the idea of reducing contact resistance of ABS II, the contact point has been moved forward to achieve smoother line release. The effect of the ring part moving forward makes it difficult for the line to get on the ring, which has resulted in an approximately 5% increase in distance and trouble-free performance over the conventional ABS II. This is the next generation ABS spool that achieves LC (= LONG CAST).
MAGSEALED
DAIWA's unique waterproof structure creates a wall of magnetic mag oil in the gap between the body and rotor, blocking out seawater, dust, and other elements.
MAGSEALED LINE ROLLER
The line roller is the part that directly receives the water and sand that the line picks up. By increasing the waterproofness of the line roller under these harsh conditions, it helps maintain the initial performance such as rotation feeling and sensitivity. In addition, the amount of salt and foreign matter that gets caught is drastically reduced, and in the EXIST, which was first adopted at that time, it was actually reduced to 1/10. Furthermore, the improved rotation also improves the effect of reducing line twist.
*Excluding Finesse Custom
Product details
■AIRDRIVE ROTOR (made by ZAION) "Why we pursue low inertia?"
DAIWA continues to work on improving the rotation response of spinning reel rotors. Based on its own theory, DAIWA has derived a new shape that looks as if it was cut out directly from a sphere.
By thoroughly removing unnecessary material from the shape, it has succeeded in significantly reducing the weight while maintaining its rigidity. This has dramatically improved the lightness of winding, which leads to improved operability and sensitivity. In addition, the new shape and screw-free exterior improve line trouble-free performance and make it even more stress-free to use. Compared
to the 19CERTATE air rotor,
the rotor unit is approximately 16% (※1) lighter (compared to the 2500 model)
and has a maximum of approximately 16% (※2) lower inertia
(※1) The comparison value of the weight reduction varies depending on the size.
(※2) The calculated value of the inertia force varies depending on the size and is maximized with the 2500 model.
By thoroughly removing unnecessary material from the shape, it has succeeded in significantly reducing the weight while maintaining its rigidity. This has dramatically improved the lightness of winding, which leads to improved operability and sensitivity. In addition, the new shape and screw-free exterior improve line trouble-free performance and make it even more stress-free to use. Compared
to the 19CERTATE air rotor,
the rotor unit is approximately 16% (※1) lighter (compared to the 2500 model)
and has a maximum of approximately 16% (※2) lower inertia
(※1) The comparison value of the weight reduction varies depending on the size.
(※2) The calculated value of the inertia force varies depending on the size and is maximized with the 2500 model.
■AIRDRIVE BAIL "Even more trouble-free"
For many years, the Air Veil installed on DAIWA spinning reels has adopted a hollow pipe structure that provides lightness and rigidity. Furthermore, its unique shape smoothly guides the line to the line roller, enabling trouble-free winding. The
Air Drive Veil has been made thinner while maintaining the necessary strength to achieve further weight reduction. In addition, the veil angle is set to the optimum angle to allow the line to transition more smoothly from the veil to the line roller. This not only supports the performance of the Air Drive Rotor, but also makes it even lighter and more trouble-free. Compared to the
19CERTATE Air Veil,
the weight is approximately 1g (approximately 33%) lighter (compared to the 2500 model)
and the veil diameter is smaller from 3mm to 2.4mm.
Air Drive Veil has been made thinner while maintaining the necessary strength to achieve further weight reduction. In addition, the veil angle is set to the optimum angle to allow the line to transition more smoothly from the veil to the line roller. This not only supports the performance of the Air Drive Rotor, but also makes it even lighter and more trouble-free. Compared to the
19CERTATE Air Veil,
the weight is approximately 1g (approximately 33%) lighter (compared to the 2500 model)
and the veil diameter is smaller from 3mm to 2.4mm.
■AIRDRIVE SPOOL "New design reflecting the future"
Based on meticulous strength calculations, unnecessary material has been thoroughly removed to achieve a thin-walled design that is extremely lightweight. Not only the thin-walled design of the line winding section and spool skirt, but also the hollowing out of the inside of the spool is completely uncompromising. The lighter spool improves ease of winding and casting. In addition, a new drag sound mechanism with less operating resistance has been developed. This improves response when the drag is activated.
Compared to the 19CERTATE spool, it maintains the clicking sound when the drag is pulled out while reducing operating resistance.
Compared to the 19CERTATE spool, it maintains the clicking sound when the drag is pulled out while reducing operating resistance.
■AIRDRIVE SHAFT "The force you apply is directly transferred to the rotor"
The Linear Shaft that DAIWA has been using on spinning reels is a system that eliminates friction by making the main shaft non-contact with the pinion. The
Air Drive Shaft further supports both ends of the pinion with ball bearings, making it possible to transfer the power input from the handle to the rotational force of the rotor as much as possible. In addition, by supporting the main shaft with a high-precision collar, it has been possible to thoroughly reduce rotational noise.
Air Drive Shaft further supports both ends of the pinion with ball bearings, making it possible to transfer the power input from the handle to the rotational force of the rotor as much as possible. In addition, by supporting the main shaft with a high-precision collar, it has been possible to thoroughly reduce rotational noise.
■MONOCOQUE BODY "Lightness and strength bring infinite possibilities"
The monocoque structure is a structure in which the body itself has the rigidity of a frame, is resistant to twisting and bending, and realizes space saving. It is used in rockets and F1 machines, which require durability and space efficiency under extreme conditions. Its effect is also tremendous in spinning reels. By eliminating the need for space to fix the screws, the size of the drive gear relative to the body dimensions is expanded to the maximum. It is now possible to store a large-diameter drive gear that actually occupies about 85% of the body area. In other words, a body of the same size as before can store a huge gear, and if the gear size is the same as before, a very compact body can be realized. It is a technology with infinite possibilities to make strong things lighter, and it is a lightweight and strong technology that can be said to be the core of Daiwa's "LT" LIGHT & TOUGH for spinning reels. The 24CERTATE uses a high-rigidity full metal (made of aluminum) monocoque body.
■Super duralumin MC (machine cut) Tough Digigear "Precise meshing creates power"
The drive gear, the most important part of a reel, requires three elements (design concept, processing technology, and gear material).
The MC Tough Digigear made of ultra-super duralumin mounted on the 24CERTATE is made of a material that is cold forged to give it high strength, and is machine cut with high precision to create the ideal gear. In addition, the drive gear is given a special surface treatment to increase the surface hardness of the gear, reducing the adverse effects caused by sudden force. Furthermore, for the large-sized LT3000, LT4000-C, LT5000-C, and LT5000 XH gear models, which are expected to be subjected to high loads on the gear, we have newly adopted a high-strength pinion that has been proven effective in Saltiga and other models to ensure safety.
The MC Tough Digigear made of ultra-super duralumin mounted on the 24CERTATE is made of a material that is cold forged to give it high strength, and is machine cut with high precision to create the ideal gear. In addition, the drive gear is given a special surface treatment to increase the surface hardness of the gear, reducing the adverse effects caused by sudden force. Furthermore, for the large-sized LT3000, LT4000-C, LT5000-C, and LT5000 XH gear models, which are expected to be subjected to high loads on the gear, we have newly adopted a high-strength pinion that has been proven effective in Saltiga and other models to ensure safety.
■ATD TYPE-L "Different tracking capabilities"
The ATD TYPE-L improves the initial response of spinning reels while retaining the ATD's characteristic of working smoothly in response to the pull of the fish. It has been tuned to provide the smooth start required when using light lines, further reducing the load on the line and allowing for quick landing without excessive stress on the fish.
(The 5000 size is equipped with a carbon washer ATD.)
(The 5000 size is equipped with a carbon washer ATD.)
■LC-ABS (Long Cast-ABS) "Even Further"
While keeping the idea of reducing contact resistance of ABS II, the contact point has been moved forward to achieve smoother line release. The ring part is now more difficult to get on the ring, resulting in a 5% increase in casting distance and trouble-free performance over the conventional ABS II. This is the next generation ABS spool that achieves LC (= LONG CAST).
■ Stopperless body "Even lighter and more trouble-free"
The body structure has been simplified by removing the stopper. The decision to remove the stopper, which is a route for water and foreign objects to enter, has not only reduced the weight and improved the waterproof performance, but also minimized the risk of sudden trouble in harsh environments or when dealing with large fish, which is required for 24CERTATE.
■Perfect Line Stopper
■EVA round light knob (fitted on size 5000)
■ Line roller (FC)
(Model without Magseal line roller)
■ Line roller
(Standard) (Model equipped with Magseal line roller)
Recommended fishing species by size
■24CERTATE ball bearings installed in
10 BBs (12 BBs installed in double handle models)
・Pinion 2BBs (CRBBs)
・Drive gear 2BBs (CRBBs)
・Line roller 2BBs (CRBBs)
・Handle knob 2BBs (CRBBs)
(double handle models are 2x2BBs)
・Main shaft 1BB (CRBBs)
・Oscillating gear 1BB (CRBBs)
(*1BB each can be added to the spool and spool metal sections)
10 BBs (12 BBs installed in double handle models)
・Pinion 2BBs (CRBBs)
・Drive gear 2BBs (CRBBs)
・Line roller 2BBs (CRBBs)
・Handle knob 2BBs (CRBBs)
(double handle models are 2x2BBs)
・Main shaft 1BB (CRBBs)
・Oscillating gear 1BB (CRBBs)
(*1BB each can be added to the spool and spool metal sections)
