Daiwa

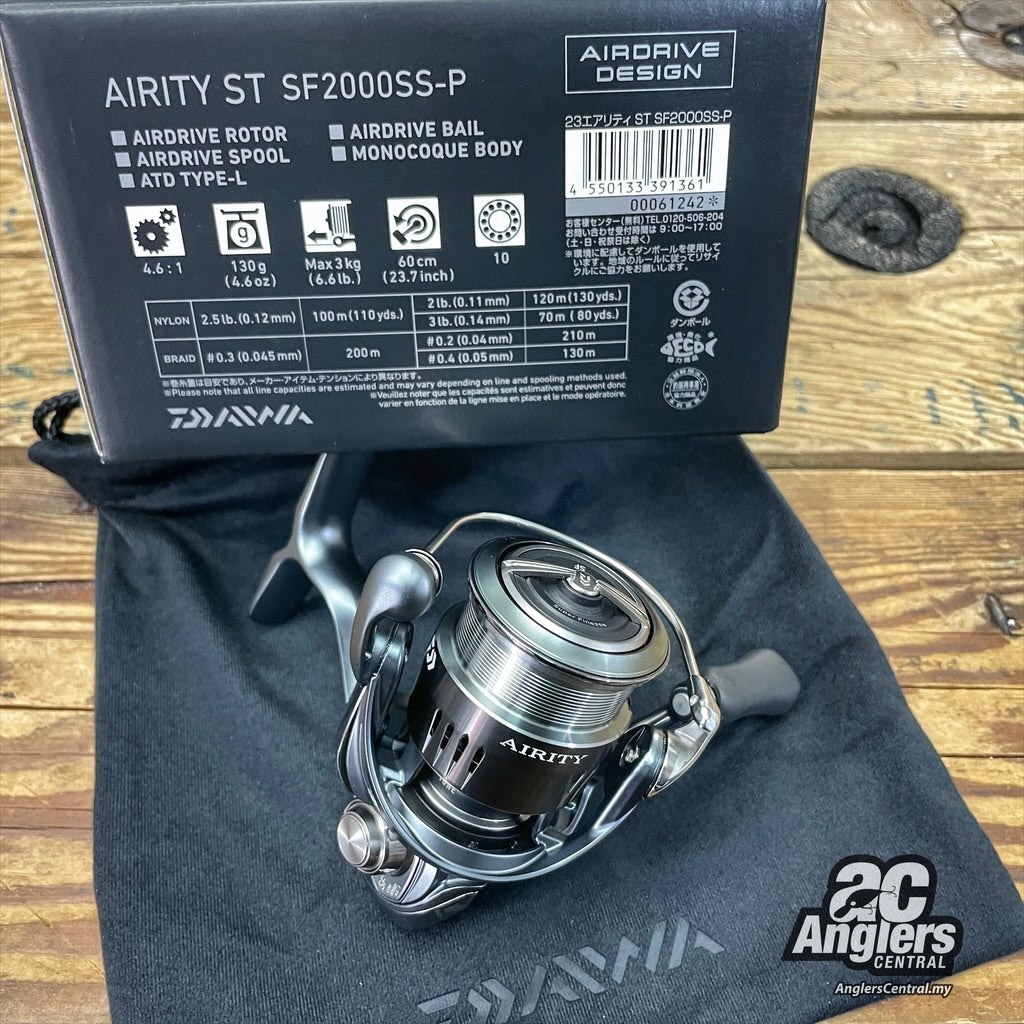

23 Airity ST SF2000SS-P

23 Airity ST SF2000SS-P

Regular price MYR1,800.00
Regular price MYR2,245.00 Sale price MYR1,800.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock

NOTIFY ME WHEN IN STOCK
item Standard weight (g) Winding length (cm/1 rotation of handle) gear ratio Standard winding amount nylon (lb-m) Standard winding thread amount PE (No. m) Handle arm length (mm) Bearing (ball/roller) Maximum drag force (kg) Spool dimensions (diameter mm) Handle knob specifications body material body composition rotor spool
23AIRITY ST SF2000SS-P 130 60 4.6 2.5-100 0.3-200 40 10/1 3 42 HG-I Finesse magnesium 1 part (monocoque) ZAION thin wall aluminum

For anglers who seek a delicate and direct rotational feel.

For area trout, native trout, and bass fishing, the desire of expert anglers to pursue the rotational performance of reels knows no bounds. Lighter winding comfort and higher winding sensitivity - a special tune that takes this insatiable wish seriously and pursues the ultimate in rotation. That is 23AIRITY ST (Sensitive Tune). Another version of the ultra-lightweight spinning reel "AIRITY" that provides a more delicate and direct winding experience. The lineup includes 6 models specialized for finesse fishing, including ST and ST SF. While maintaining the basic performance of 23AIRITY/23AIRITY SF, the BB (ball bearing) of the main rotating part, which is directly connected to the lightness of the handle rotation, has been changed from the normal model's grease specification BB to an oil specification BB. We chose a low-viscosity oil-based BB, even abandoning the high durability that characterizes grease BBs, and achieved a high degree of lightness in rotation. That is not all. We intentionally did not use a mag shield on the pinion part, which is the key to waterproofing and dustproofing, and we paid particular attention to the slight weight reduction that is not listed in the specifications. What anglers get from this is finely honed rotational performance. Reeling resistance to the extremely numb fingertips, overwhelming amount of information transmitted to the hands turning the handle. The pride of AIRITY ST is available to anglers who seek a “direct rotational feel.”

*RCS handle, RCS handle knob (S) can be replaced
*SLP W EX SF spool can be installed (LT model can be equipped with EX LT spool)

[Differences from 23AIRITY normal model]
① BB of the main rotating part is changed to oil specification BB
② Not equipped with mag shield
③ Design that makes it obvious that it is a sensitive tune model at a glance

daiwa technology

AIRDRIVE DESIGN
Air Drive Design is a next-generation spinning reel design concept that allows anglers to control the lure as they desire. The air drive design consists of up to four technologies. The air drive spool is equipped with an air drive rotor that unwinds easily and generates high-response rotation, and is lightweight and trouble-free.The air drive spool has a thin wall design that eliminates unnecessary meat to the limit and is extremely lightweight. , an air drive shaft that supports the main shaft with a high-precision collar and has a non-contact structure with the pinion gear, enabling light winding with extremely little rotational noise even under high loads. The synergistic effect of these and the improvement of the weight balance of the reel achieve high-level operability.
AIRDRIVE ROTOR
Using our unique theory, we have created a new shape that looks as if it was cut directly from a sphere, and by thoroughly removing unnecessary flesh from it, we have achieved a significant weight reduction while maintaining rigidity. The lightness of unwinding has been dramatically improved, leading to improved operability and sensitivity.
AIRDRIVE BAIL
Airveil, which has traditionally adopted a hollow pipe structure that provides rigidity and lightness, has been made smaller in diameter while maintaining the necessary strength to further reduce weight. The slope is set to the optimal bail angle that allows the line to transition more smoothly from the bail to the line roller. Achieved even lighter weight and trouble-free operation.
AIRDRIVE SPOOL
Thin-walled design with unnecessary meat removed to reduce weight. Not only the thin wall design of the spool skirt, but also the thinning of the inside of the spool has been thoroughly reduced in weight. The lighter spool improves ease of unwinding and ease of casting. Furthermore, the drag sounding mechanism with low operating resistance improves response during drag operation.
AIRDRIVE SHAFT
This system has a non-contact structure between the main shaft and pinion, and by supporting a linear shaft with zero frictional resistance and supporting both ends of the pinion with a BB, it is possible to connect the input power to maximum rotational force. Furthermore, by supporting the main shaft with a high-precision collar, we have made it possible to thoroughly reduce rotational noise.
*SF has linear shaft specifications
MONOCOQUE BODY
Strong and durable technology, monocoque body. Conventionally, spinning reels generally supported both ends of the drive gear with the body and body cover, and fixed them with several screws. From this structure, we aimed to further improve precision and rigidity by eliminating the body cover and fixing the monocoque body by screwing a high-precision plate directly into the body. This increases gear support precision, and also improves rigidity and airtightness. Furthermore, we have succeeded in maximizing the size of the drive gear by utilizing the space previously taken up by screws. Monocoque body means MONO (one) - COQUE (shell). The completely new shape, which symbolizes the toughness of a monovalve shell, breaks the conventional wisdom of reel construction.
TOUGH DIGIGEAR
In order to withstand harsh environments, a strong heart is required to support the reel. "Tough Digi Gear" provides smooth rotation for a longer period of time.
ATD TYPE-L
ATD that operates smoothly according to the pull of the fish and continues to work smoothly. ATD TYPE-L has improved initial response. In pursuit of start-up and tracking performance, it is now possible to concentrate on the fight without worrying about drag settings.
LC-ABS (Long cast ABS)
While maintaining the concept of reducing contact resistance of ABSⅡ, by bringing the contact point forward, smoother line release is achieved. The effect of the ring part being brought forward makes it difficult for the line to ride on the ring, and we have succeeded in increasing the distance by approximately 5% and improving trouble-free performance over the conventional ABS II. This is a next generation ABS spool that realizes LC (=LONG CAST).
QUICK DRAG
A drag that allows for instantaneous "quick" adjustment. With just a few turns of the drag knob, you can instantly change the settings significantly. It can be used in a variety of ways depending on the line, tackle, and fishing method used.
*SF2500SS-H-QD, LT2500S-XH-QD only

Product details

■AIRDRIVE ROTOR (manufactured by ZAION) “Reasons for pursuing low inertia”
DAIWA continues to work on improving the rotational response of spinning reel rotors. Based on its own theory, DAIWA has created a new shape that looks like it was cut directly from a sphere. By thoroughly removing unnecessary meat, we succeeded in significantly reducing weight while maintaining rigidity. This has dramatically improved the lightness of unwinding, leading to improved operability and sensitivity.

Compared to the 21L.AIRITY air rotor,
the rotor unit is approximately 16% (*1) lighter (compared to No. 2500),
up to approximately 16% (*2) lower inertia

(*1), and the weight reduction comparison values ​​are based on size. It depends.
(*2) The calculated value of inertia force varies depending on the size, and is maximized with No. 2500.
■AIRDRIVE BAIL “Even more trouble-free”
For many years, the Airveil installed on DAIWA's spinning reels has adopted a hollow pipe structure that provides lightness and rigidity. In addition, the unique shape allows the line to be guided smoothly to the line roller, allowing for trouble-free unwinding. In order to further reduce weight, Air Drive Bale has been made smaller in diameter while maintaining the necessary strength. In addition, the slope is set to the optimal bail angle that allows the line to transition more smoothly from the bail to the line roller. It not only supports the performance of air drive rotors, but is also lighter and trouble-free.

Compared to the 21L.AIRITY air veil,
the weight has been reduced by approximately 1g (approximately 33%) (compared to No. 2500),
and the veil diameter has been reduced from 3mm to 2.4mm.
■AIRDRIVE SPOOL “New design that reflects the future”
Based on careful strength calculations, unnecessary material has been thoroughly removed to create a thin-walled design that achieves weight reduction. No compromises have been made, not only in the thin wall design of the bobbin winding section and spool skirt section, but also in the thinning of the interior of the spool. The lighter spool improves ease of unwinding and ease of casting. Furthermore, we have newly developed a drag sounding mechanism with less operating resistance. Achieved improved response during drag operation.

Compared to the 21L.AIRITY air spool,
we have achieved a reduction in operating resistance while maintaining the click volume when pulling out the drag.
■AIRDRIVE SHAFT “Put the power directly into the rotor”
The linear shaft that DAIWA has installed in its spinning reels is a system that reduces frictional resistance to zero by making the main shaft non-contact with the pinion. The air drive shaft further supports both ends of the pinion with ball bearings, making it possible to maximize the power input from the handle into the rotational force of the rotor. Additionally, by supporting the main shaft with a high-precision collar, it has been possible to thoroughly reduce rotational noise.

*SF has linear shaft specifications
■Full metal (Mg) monocoque body
Adopts a full metal (Mg) monocoque body. The largest diameter Tough DigiGear is enclosed in a highly rigid, lightweight and compact housing.
■Super Duralumin MC (machine cut) Tough DigiGear "Precise meshing creates power"
The drive gear, the most important part of the reel, requires a trinity of elements (design concept, processing technology, and gear material). The ultra-super duralumin MC Tough Digigear installed in AIRITY ST is made from cold-forged material with high strength and is machine-cut with high precision to create the ideal gear. In addition, special surface treatment is applied to the drive gear to increase the surface hardness of the gear, reducing the negative effects caused by unexpected force.

■ATD TYPE-L “Followability is different”
ATD TYPE-L maintains the characteristics of ATD that continues to work smoothly according to the pull of the fish, but further improves the initial response of the spinning reel. Tuning has been done with a focus on the smooth start required when using a light line, further reducing the load on the line, and making it possible to land in a short time without putting excessive stress on the fish.
■LC-ABS (Long Cast-ABS) “Going further”
While maintaining the concept of reducing contact resistance of ABSⅡ, by bringing the contact point forward, smoother line release is achieved. The effect of the ring part being pushed forward makes it difficult for the line to ride on the ring, resulting in an approximately 5% increase in flight distance and trouble-free performance over the conventional ABS II. This is the next generation ABS spool that truly realizes LC (=LONG CAST).
■SENSITIVE TUNE
A special tune that realizes a delicate and direct winding feeling by changing the BB (bearing) of the main rotating part, which is directly connected to the lightness of rotation, from the normal model's grease specification BB (CRBB) to an oil specification BB. Furthermore, since it is intended to be used for finesse fishing, the mag shield on the pinion part has been removed to make it as light as possible.
■High grip I type finesse knob
Adopts a "high grip I-type finesse knob" that matches delicate fishing. The lightweight, hollowed-out knob enables reeling with light force, contributing to improved winding sensitivity.
The improved winding sensitivity is a great advantage for area trout, native trout, and light salt games that require delicate retrieval performance. High grip specification ensures firm grip performance and ease of grip despite being small and lightweight.

*Standard on SF1000S-P, SF2000SS-P, SF2000SS-H
