IOS Factory

Line Roller Direct (For Real Four Daiwa)

Line Roller Direct (For Real Four Daiwa)

Regular price MYR260.00
Regular price Sale price MYR260.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock

NOTIFY ME WHEN IN STOCK

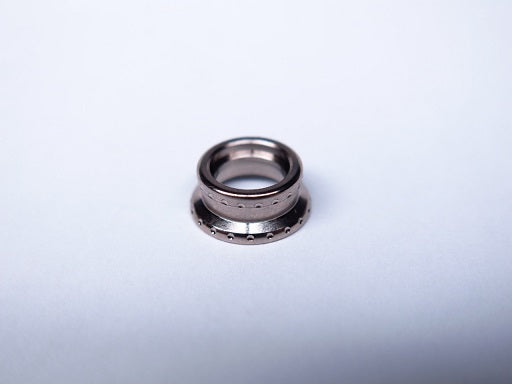

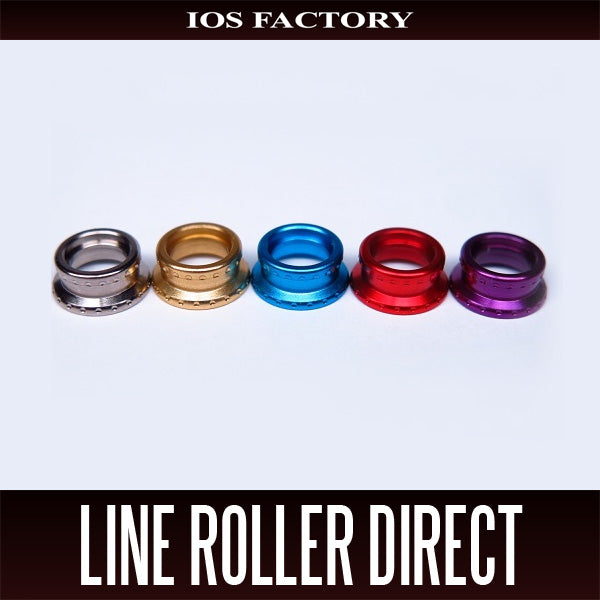

◆ real Four lineup




Silver (for freshwater dedicated)
Excellent compatibility with silver reels
* Ends as soon as stock runs out


Gold (for freshwater dedicated)
* Ends as soon as stock runs out


Ion Gold (for salt)
All-purpose player that fits any reel
* For normal freshwater only Gold will end as soon as it is out of stock


Blue (Salt compatible)
Excellent compatibility with silver and blue reels

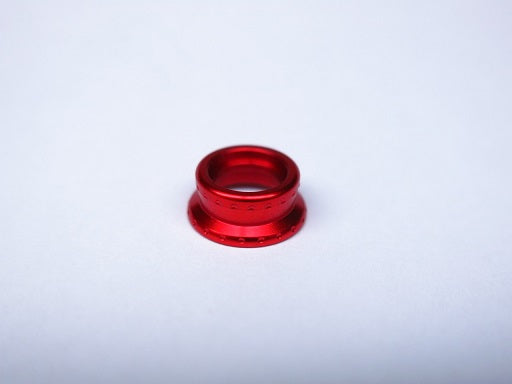

Red (Salt compatible)
Excellent compatibility with black reels


Purple (Salt compatible) Compatibility with
blue and black reels There preeminent


Paraiba Blue (2019 new color Salt correspondence)
miracle of jewelry, color of the image of a Paraiba tourmaline is, with any reel is the color that will be familiar and strange
especially is great with pale metallic system of reel


Gun Metal (Salt corresponding ) New color in 2020
Semi-glossy dark gunmetal color is just match with black reel


◆ TD-based lineup



│ freshwater dedicated
・Silver
・Gold

│ fresh water, sea water dual-use
・Red


improve the rotation of the line roller that is, retrieve sensitivity improvement.

It aims to line trouble mitigation, further also may be any line tension, that the line is wound in alignment with the spool, excellent release was stable at the time of casting, is the line roller good distance improvement of Gaidonuke can experience.

The rotation property, in a state in which the lure is not about, rotation of the about turn in the weight of the line is, you can check the movement of the dot holes of excellent design.

Fishing, when the fish hits, the line instead of the roller turns, even when the processing time and less extreme resistance lure of the line slack has been retrieved, and always does not rotate, the line you've twist it will involve the spool.

At the time of the cast, there is that their line will be released all at once, the flight distance decreases, of course, will also lead to the cause of such backlash.

Line roller that does not turn, not only significantly reduces the retrieved sensitivity, the flight distance decreases and the line trouble such as like, leads to the trigger of various trouble.

IOS line roller Direct, using the Rain'yore unavoidable for spinning Rather, the flight distance improvement of Daiwa real Four reel, improve the winding sensitivity improvement, it is a completely new concept of the line roller.





│ line roller type lineup

1 real for
Daiwa mug shield there without most of the real Four for
-17 Theory 1000 series and 3000 series reel, including the target
excluded for ※ However models It will be.

2 TD for
· TD Ignis, TD-X, Z, SC -Z , etc.
, founder Seruteto, primary Blanc Gino, etc.
-1000 series 〜2508 series reel the target

color is Salt and correspondence of red, fresh water only of gold and silver only will you

3 16 Seruteto, 17 Steez for
-16 Seruteto system, 17 Steez system, such as Presso Limited, will conform to the line roller Long Taber shape.
Color is Salt correspondence between red, it will be the only gold of fresh water only.

※ some primary Seruteto, such as Blanc Gino is true is TD-based line roller.
However, Blanc Gino, so we change the shape of the line roller by the year, please purchase on the spot confirmation.

※ 16 Seruteto, 17 Steez such as a line roller Long taper specifications, please purchase the "line roller direct 16 Seruteto-17 for Steez-Presso Limited".

※ After mounting, due to changes in weight balance, but will cause some of the rotor rotation shake, there is no harm in a normal retrieve.


※ When you are looking for, please wearing what was sure to reel.
If the size does not fit, not only does not exhibit the performance, there is a risk that can not be mounted in the worst case.


│ fresh water / seawater corresponding color
, red, purple, blue will be fresh water, sea water combined.
Silver and Gold, corrosion resistance is weak, we recommend the use of basically fresh water.
- However, TD-based color will be silver, gold, and red of three colors.


│ bundled product
line roller body
, only a stainless steel bearing
, various adjustment shim
-dedicated fixing screws
and mounting instructions (package described)

※ Please note.
Line roller Direct real Four / for TD is a custom parts to increase the rotation of the line roller of Daiwa reel, but can also be replaced with a mug shield mounted reel, mug shield is waterproof, dustproof, excellent line roller corrosion resistance , and the because there are times when the durability in comparison with the pure line roller mug shield mounted inferior, Please understand the situation at the time of mounting.


Installation example TD system






installation sample real Four system










◆ for real method of attachment

Rial system 05 Igujisuto

has a line roller is fixed (bis) by loosening the screw, clean the inside Remove all lines roller unit.


Bearing from the second bail back, line roller body, in the order of bearing 0.1mm shim (usually 2 to 4 sheets), each part both IOS-02 is assembled with generous applied, tighten the Sutenbisu of accessories, a minimum rattling to check the rotation and clearance.

※ Sutenbisu of tightening Sugiya, put too much of 0.1mm shim, please note that the worse the rotation of the line roller.
In addition, the before and after use reel, please be sure to check the loosening of the screw.
There is a risk of parts falling.



│ line position of the roller

large circle of dots of the line roller is the ideal that hide about half. (Image 1)
dot I get the flight distance performance enough to hide below the arm lever, but the line will be easier twisting. (Image 2)

risk of Rain'yore as dots on - is completely visible will be less, but tend to decrease the distance.

Image 1


image 2

by the reel all of the individual differences, and differences in the position of the line roller.
Fine-tuning, please adjusted with the included 0.1mm shim.
In addition, due to individual differences and history of use of the reel, it may not come to a position where the hidden half of the dot.


Note ※
custom parts attached, inferior to superior durability of genuine, it may manufacturer's warranty can not be received.
Please note.


Rial system 12 Igujisuto


a line roller is fixed (bis) by loosening the screw, remove all line roller unit, washing the bale back.


2 veil back from 0.5mm shim, bearings, line roller body, bearing, two 0.5mm shim, in the order of 0.1mm shim, assembled while larger amount applied each part both IOS-02, tighten the Sutenbisu of accessories to check the rotation.

※ tightening too much Sutenbisu, please note that the worse the rotation of the line roller.
Or rotation is bad, if you do not want to, reduce the 0.1mm shim number.
In addition, the before and after use reel, please be sure to check the loosening of the screw.
There is a risk of parts falling.



- real system 17 Theory ed

※ in line roller back, will also be included in the reel there is a golden plate.

Loosen securing the 1-line roller a (bis) screw, Remove all lines roller unit, washing the bale back.
Golden plate of the veil back also removed.
If you do not come off, over wipe the parts cleaner, it will come off and hit lightly from the back side.




2 veil back from 0.5mm shim, bearings, line roller body, bearing, two 0.5mm shim, the last in a 0.1mm shim, to the extent line roller moves slightly up and down, and, hidden at the bottom line roller dot half the extent to,
in each part both, after assembling while larger amount of application of the IOS-02, tighten the Sutenbisu of accessories, to check the clearance with the rotation of the line roller.

※ tightening too much Sutenbisu, please note that the worse the rotation of the line roller.
Or rotation is bad, if you do not want to, reduce the 0.1mm shim number.
In addition, the before and after use reel, please be sure to check the loosening of the screw.
There is a risk of parts falling.


The proper position of the line roller

large circle of dots of the line roller is the ideal that hide about half.
When the dot part will completely exposed, wind-sensitivity but to improve, it will be According line stand out.

It should be noted that the position of the line roller is different by all of the individual differences reel.
Fine-tuning, please adjusted with the included 0.1mm shim.
In addition, due to individual differences and history of use of the reel, it may not come to a position where the hidden dot half.

※ Caution
Mug shield mechanism is an excellent mechanism to durability.
You or inferior in durability to remove the mug shield, custom parts installed, you may manufacturer's warranty can not be received.
Please note.



◆ TD for the method of attachment

Easy & rotation noise fewer Settings

to loosen the are (bis) screw to secure the 1 line roller, remove all of the unit.


After 2 veil cleaning, the Sutenbisu of accessory plug from the arm lever.


3 bearing on it, line roller body, are assembled in the order of 0.5mm shim, tighten the last screw.


For the location of the four-line roller, a dot of a large wheel of the line roller is the ideal that hide about half.
Dot, you get the flight distance performance enough to hide below the arm lever, but the line will be easier twisting.
As the dot above is completely visible, but the risk of Rain'yore will be less, distance will tend to decrease.



※ position of the line roller is different by all of the individual differences reel.
Please adjusted with the included 0.2mm shim fine-tuning.



5 minimum After confirming the extent of clearance ensure that around, to make sure the line roller rotation to tighten the Sutenbisu attached.
If the line roller does not rotate, try the "rotation performance-oriented setting for the TD" below.
In addition, the before and after use reel, please be sure to check the loosening of the screw.
There is a risk of parts falling


"TD for the rotation performance-oriented setting"

Loosen the 1 line that secures the roller (bis) screw, remove all of the line roller unit.


2 veil the back of the line roller color (blue or black or white) is removed by hooking a hook or the like


after washing the 3 veil, the Sutenbisu of accessory plug from the arm lever, bearing on it, line roller body, 0.5mm shim, in the order of color (on selection), each part both, assembled with generous coated with the IOS-02.

In the case of SC-Z


case of mug shield mounted previous primary Seruteto

at 4 comes with a white two kinds of color, you need to adjust the clearance secure enough to turn a minimum.

If you do not rotate, check if there are no forgotten of 0.5mm shim.
In addition, if the line roller there is no top and bottom of the gap is not rotated, either by using the low color of the height, please be fine-tuned by cutting further the white color in the sharpener or the like. (Usually, you do not need to shave.)
Tighten the Sutenbisu of accessories, to make sure the line roller rotation again.
Please check the slack of always bis before and after use reel.
There is a risk of parts falling.

For the location of the 5 line roller, a dot of a large wheel of the line roller is the ideal that hide about half.
Dot I get the flight distance performance enough to hide below the arm lever, but the line will be easier twisting.
As the dot above is completely visible, but the risk of Rain'yore will be less, distance will tend to decrease.





※ position of the line roller is different by all of the individual differences reel.
Please adjusted with the included 0.2mm shim fine-tuning.
By adjusting the clearance of the line roller is changed, there is a case where there is a need to re-adjust the color.




◎ developers column

"IOS line roller Direct / impact"

and say when you replace the line roller and extend the flight distance, some people think such stupid over, and.
However, too late of course, you can experience that to improve anyone distance and sensitivity if loyal.
As you crowded spear reel maintenance, deep it is how the line roller function, and, if it were a very important part for the reel, know firsthand.

Some people, too fly, lure will reach the opposite shore, well eliminate more of the line roller, because the line by the rotation of the line roller is involved in a well-aligned spool, line release is smoothly at the time of casting, the guide of missing by dramatically improved, because the results distance exits is why leaving flight distance.

Well, winding or sensitivity is why useless in? The genuine to improve? Do not I use?
When the above-mentioned line roller is rotated, the clean line has been described as being wound well aligned with the spool.

Line roller is, for example, what happens? When does not turn at all
in line with the alignment is disturbed, while resulting in a According unstable line, caught up in the spool.
According line, the resistance of the release significantly, not only out results distance, worst, likely in trouble such as the backlash.

There is a line as the only input transmission path of the vibration of the angler, the vibration of the line is transmitted directly to the intact line roller.
For example, it may become lighter retrieve the lip of the wobbling, such as crankbait, repeated or heavier with a slight pitch, generally winding of strength feel in the steering wheel, also referred to as a winding sensitivity to this.

Well, the rotation of the line roller, and the load of the load and retrieve the lure to be used, line roller first place of the rotation of the good and bad, will change significantly.
As a way to check whether the line roller is turning, and try to slowly retrieve mark the line roller in magic, line or roller is spinning, not around one of the confirmation can be.

In particular, the reel of such areas and light salt, it is also not unusual to use a 1g before and after the lure, it sought to improve the rotational performance of the course line roller, the deterioration of the not turn vibration leads to loss as well.
By the way, IOS line roller would normally Settings, put a line in the water around firmly alone was fitted with a snap.

Also, IOS line rollers, of course improve the rotatability utilizes accordance line dare even degree emitted become coiled spinning peculiar spiral, are controlling.
With respect to the guide ring, there is the approach angle of the ideal of the line, it will lead to the distance improvement.
To control it, the shape of the consideration of the line roller the approach angle of the line.

This development, about one year almost every day, to create a prototype of the line roller, was devoted to the development turned down most of the events.
Of course, close to the Kobayashi also no income of development, this is prepared to fold their company if you are not successful, and to him, taken by emaciation, was told to was languishing.

Not only the performance of the line roller, indeed whether Morikomeru the IOS likeness?
Of course, is also required that does not freeze even at -10 degrees or more.
Situation of trial and error that the goal is not visible, have been spelled out in the past blog, I personally also, there is also compromise of the patent with manufacturers of genuine line roller, mind and body, as well as rock bottom in company managerial even down to, every day, every day, only the shape of the line roller as incoherent muttering, day-to-day unthinkable was followed.

Literally, the IOS best ever is a crisis absolute death, is this thing.
After that, the manufacturer, send a final sample, after a few months, when my mobile phone to the manufacturer in charge of OK phone came, despite ran a high-speed, "Yossha!" In one person I remember that it has cheered with.
I learned at that time, "It's of course difficult because the people are trying to do that you do not do it".
And "that do not know, let it because I do not know." I learned that.
And "because not float anyway it is good idea even if impatient, it is better that had been dug in haste to flicker." I thought both.

Because there is a struggle at this time, now is also considerable groping in the dark is followed, is the Hirakinaoreru as "somehow made of.".
