I want to create spinning reels that people will love and use forever. Not for a specific person, but for all anglers. To this end, we aimed for comfortable operability for any user, and reliable rigidity that would not make you feel anxious. Even after 20 years, the philosophy behind CERTATE remains unchanged.
The next-generation spinning reel design concept "Air Drive Design" installed in NEW CERTATE is one of the achievements of CERTATE, which continues to seek comfortable operability. The design philosophy is to allow anglers to manipulate the lure as they wish, and it consists of up to four technologies. The benefits that can be gained by fully equipping this air drive design are enormous. Light operability with optimal weight balance. A light rotation feel that gives you a sense of unity with the tackle. Winding sensitivity allows you to feel even the slightest bite of a fish or change in flow. Significant reduction in the frequency of line troubles. That is CERTATE's clear answer for modern anglers. The new drag ATD TYPE-L reduces the burden on the line and promises a safe and comfortable fight with high response and smooth start.
This operability cannot be achieved without reliable rigidity. That's why CERTATE has always been particular about rigidity. The symbol of this is the monocoque body, which is made of aluminum and has a one-piece structure. Daiwa's unique technology minimizes body deflection during high loads, which was a weak point in conventional spinning reels, and achieves strong winding power. The engine plate that screws into it is also made of aluminum. In other words, the core internal structure is firmly supported by a full metal body made of aluminum. The drive gear built inside has been given a special surface treatment to increase hardness, reducing damage to the gear during high loads. The main shaft that transmits that power to the front unit uses SUS, which is even more rigid than aluminum, to maximize performance without power loss. Reliable rigidity and comfortable operability. This integrated simplicity and fortitude is proof of the trust that has been built up. NEW CERTATE, now in its 20th year of authentic evolution, is the standard spinning reel of the new era for all anglers.
Daiwa

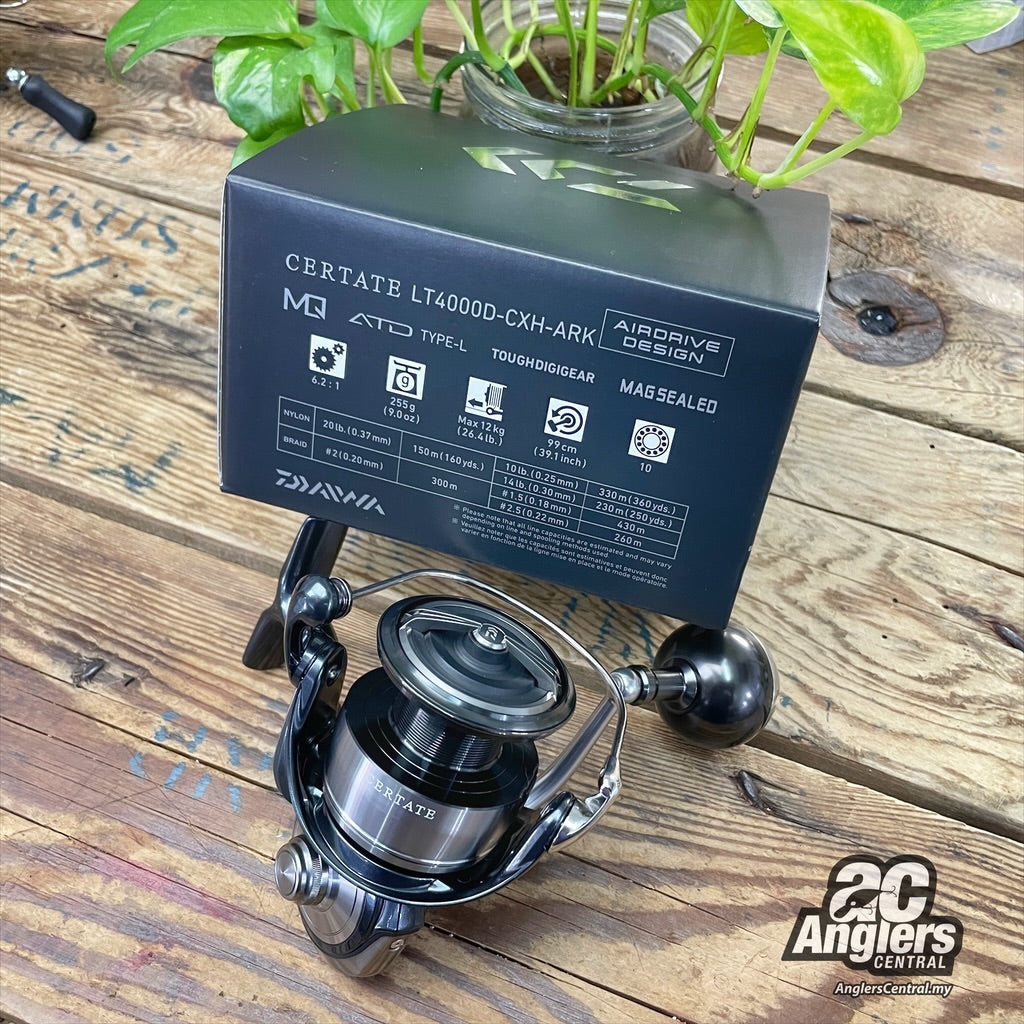

24 Certate (G) LT 4000D-CXH-ARK
24 Certate (G) LT 4000D-CXH-ARK
Regular price
MYR1,660.00
Regular price
MYR1,950.00
Sale price
MYR1,660.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Low stock
Couldn't load pickup availability
| item | Standard weight (g) | Winding length (cm/1 rotation of handle) | gear ratio | Standard winding amount nylon (lb-m) | Standard winding thread amount PE (No. m) | Handle arm length (mm) | Bearing (ball/roller) | Maximum drag force (kg) | Handle knob specifications | body composition |
|---|---|---|---|---|---|---|---|---|---|---|
| 24 Certate LT4000D-CXH-ARK | 255 | 99 | 6.2 | 20-150 | 2.0-300 | 60 | 10/1 | 12 | ARK (Aluminium Round Knob) | Full metal (AL) monocoque body |
Unwavering trust. Joy that resonates with your sensibilities.
daiwa technology
AIRDRIVE DESIGN
Air Drive Design is a next-generation spinning reel design concept that allows anglers to control the lure as they desire. The air drive design consists of up to four technologies. The air drive spool is equipped with an air drive rotor that unwinds easily and generates high-response rotation, and is lightweight and trouble-free.The air drive spool has a thin wall design that eliminates unnecessary meat to the limit and is extremely lightweight. , an air drive shaft that supports the main shaft with a high-precision collar and has a non-contact structure with the pinion gear, enabling light winding with extremely little rotational noise even under high loads. The synergistic effect of these and the improvement of the weight balance of the reel achieve high-level operability.
AIRDRIVE ROTOR
Using our unique theory, we have created a new shape that looks as if it was cut directly from a sphere, and by thoroughly removing unnecessary flesh from it, we have achieved a significant weight reduction while maintaining rigidity. The lightness of unwinding has been dramatically improved, leading to improved operability and sensitivity.
AIRDRIVE BAIL
Airveil, which has traditionally adopted a hollow pipe structure that provides rigidity and lightness, has been made smaller in diameter while maintaining the necessary strength to further reduce weight. The slope is set to the optimal bail angle that allows the line to transition more smoothly from the bail to the line roller. Achieved even lighter weight and trouble-free operation.
AIRDRIVE SPOOL
Thin wall design with unnecessary meat removed to achieve weight reduction. Not only the thin wall design of the spool skirt, but also the thinning of the inside of the spool has been thoroughly reduced in weight. The lighter spool improves ease of unwinding and ease of casting. Furthermore, the drag sounding mechanism with low operating resistance improves response during drag operation.
AIRDRIVE SHAFT
This system has a non-contact structure between the main shaft and pinion, and by supporting a linear shaft with zero frictional resistance and supporting both ends of the pinion with a BB, it is possible to connect the input power to maximum rotational force. Furthermore, by supporting the main shaft with a high-precision collar, we have made it possible to thoroughly reduce rotational noise.
MONOCOQUE BODY
Strong and durable technology, monocoque body. Conventionally, spinning reels generally supported both ends of the drive gear with the body and body cover, and fixed them with several screws. From this structure, we aimed to further improve precision and rigidity by eliminating the body cover and fixing the monocoque body by screwing a high-precision plate directly into the body. This increases gear support precision, and also improves rigidity and airtightness. Furthermore, we have succeeded in maximizing the size of the drive gear by utilizing the space previously taken up by screws. Monocoque body means MONO (one) - COQUE (shell). The completely new shape, which symbolizes the toughness of a monovalve shell, breaks the conventional wisdom of reel construction.
TOUGH DIGIGEAR
In order to withstand harsh environments, a strong heart is required to support the reel. "Tough Digi Gear" provides smooth rotation for a longer period of time.
ATD TYPE-L
ATD that operates smoothly according to the pull of the fish and continues to work smoothly. ATD TYPE-L has improved initial response. In pursuit of start-up and tracking performance, it is now possible to concentrate on the fight without worrying about drag settings.
*No. 5000 uses carbon ATD with high yield strength.
LC-ABS (Long cast ABS)
While maintaining the concept of reducing contact resistance of ABSⅡ, by bringing the contact point forward, smoother line release is achieved. The effect of the ring part being brought forward makes it difficult for the line to ride on the ring, and we have succeeded in increasing the distance by approximately 5% and improving trouble-free performance over the conventional ABS II. This is a next generation ABS spool that realizes LC (=LONG CAST).
MAGSEALED
DAIWA's unique waterproof structure creates a magnetic Magoil wall in the gap between the body and rotor to shut out seawater and dust.
MAGSEALED LINE ROLLER
The line roller part is a part that directly receives water and sand picked up by the line. Increasing the waterproofness of line rollers under these harsh conditions helps maintain initial performance such as rotational feel and sensitivity. In addition, the number of biting salts and foreign substances has been drastically reduced, and compared to EXIST, which was first adopted at the time, the number was reduced to 1/10. Furthermore, by improving the rotation, the effect of reducing thread twisting is also improved.
*Excluding finesse custom
Product details
■AIRDRIVE ROTOR (manufactured by ZAION) “Reasons for pursuing low inertia”
DAIWA continues to work on improving the rotational response of spinning reel rotors. Based on its own theory, DAIWA has created a new shape that looks like it was cut directly from a sphere.
By thoroughly removing unnecessary meat, we succeeded in significantly reducing weight while maintaining rigidity. This has dramatically improved the lightness of unwinding, leading to improved operability and sensitivity. In addition, the new shape and screw-free appearance improve line trouble-free performance and create an even more stress-free usability.
Compared to the 19CERTATE air rotor,
the rotor unit is approximately 16% (*1) lighter (compared to No. 2500)
, and up to approximately 16% (*2) lower inertia
(*1) Comparative weight reduction values vary depending on size. Masu.
(*2) The calculated value of inertia varies depending on the size, and is maximized with No. 2500.
By thoroughly removing unnecessary meat, we succeeded in significantly reducing weight while maintaining rigidity. This has dramatically improved the lightness of unwinding, leading to improved operability and sensitivity. In addition, the new shape and screw-free appearance improve line trouble-free performance and create an even more stress-free usability.
Compared to the 19CERTATE air rotor,
the rotor unit is approximately 16% (*1) lighter (compared to No. 2500)
, and up to approximately 16% (*2) lower inertia
(*1) Comparative weight reduction values vary depending on size. Masu.
(*2) The calculated value of inertia varies depending on the size, and is maximized with No. 2500.
■AIRDRIVE BAIL “Even more trouble-free”
For many years, the Airveil installed on DAIWA's spinning reels has adopted a hollow pipe structure that provides lightness and rigidity. In addition, the unique shape allows the line to be guided smoothly to the line roller, allowing for trouble-free unwinding.
In order to further reduce weight, Air Drive Bale has been made smaller in diameter while maintaining the necessary strength. In addition, the slope is set to the optimal bail angle that allows the line to transition more smoothly from the bail to the line roller. It not only supports the performance of air drive rotors, but is also lighter and trouble-free.
Compared to 19CERTATE's air veil,
the weight is reduced by approximately 1g (approximately 33%) (compared to No. 2500),
and the bail diameter is reduced from 3mm to 2.4mm.
In order to further reduce weight, Air Drive Bale has been made smaller in diameter while maintaining the necessary strength. In addition, the slope is set to the optimal bail angle that allows the line to transition more smoothly from the bail to the line roller. It not only supports the performance of air drive rotors, but is also lighter and trouble-free.
Compared to 19CERTATE's air veil,
the weight is reduced by approximately 1g (approximately 33%) (compared to No. 2500),
and the bail diameter is reduced from 3mm to 2.4mm.
■AIRDRIVE SPOOL “New design that reflects the future”
Based on careful strength calculations, unnecessary material has been thoroughly removed to create a thin-walled design that achieves weight reduction. No compromises have been made, not only in the thin wall design of the bobbin winding section and spool skirt section, but also in the thinning of the interior of the spool. The lighter spool improves ease of unwinding and ease of casting. Furthermore, we have newly developed a drag sounding mechanism with less operating resistance. Achieved improved response during drag operation.
Compared to the 19CERTATE spool, we have achieved a reduction in operating resistance while maintaining the click volume when pulling out the drag.
Compared to the 19CERTATE spool, we have achieved a reduction in operating resistance while maintaining the click volume when pulling out the drag.
■AIRDRIVE SHAFT “Put the power directly into the rotor”
The linear shaft that DAIWA has installed in its spinning reels is a system that reduces frictional resistance to zero by making the main shaft non-contact with the pinion.
The air drive shaft further supports both ends of the pinion with ball bearings, making it possible to maximize the power input from the handle into the rotational force of the rotor. Additionally, by supporting the main shaft with a high-precision collar, it has been possible to thoroughly reduce rotational noise.
The air drive shaft further supports both ends of the pinion with ball bearings, making it possible to maximize the power input from the handle into the rotational force of the rotor. Additionally, by supporting the main shaft with a high-precision collar, it has been possible to thoroughly reduce rotational noise.
■MONOCOQUE BODY “Infinite possibilities brought about by lightness and strength”
A monocoque structure means that the body itself has the rigidity of a frame, is resistant to twisting and bending, and saves space. It is used in rockets and F1 machines that require durability and space efficiency under extreme conditions. Even with a spinning reel, the effect is tremendous. By eliminating the need for space to fix screws, the size of the drive gear relative to the body dimensions has been maximized. In fact, it is now possible to store large-diameter drive gears that occupy approximately 85% of the body area. In other words, if the body is the same size as before, it will be able to store huge gears, and if the gear size is the same as before, it will be possible to create a very compact body. It is a technology that has infinite possibilities to make strong things lighter, and it is a lightweight and strong technology that can be said to be the core of the "LT" LIGHT & TOUGH that Daiwa seeks for spinning reels. 24CERTATE uses a highly rigid full metal (AL) monocoque body.
■Super Duralumin MC (machine cut) Tough DigiGear "Precise meshing creates power"
The drive gear, the most important part of the reel, requires a trinity of elements (design concept, processing technology, and gear material).
The ultra-super duralumin MC Tough Digigear installed in 24CERTATE is made from cold-forged material with high strength and is machine-cut with high precision to create the ideal gear. In addition, special surface treatment is applied to the drive gear to increase the surface hardness of the gear, reducing the negative effects caused by unexpected force. Furthermore, the large-sized LT3000, LT4000-C, LT5000-C, and LT5000 XH gear models, which are expected to be subject to high loads, have newly adopted a high-strength pinion, which has a proven track record in Saltiga, etc., to ensure complete safety. did.
The ultra-super duralumin MC Tough Digigear installed in 24CERTATE is made from cold-forged material with high strength and is machine-cut with high precision to create the ideal gear. In addition, special surface treatment is applied to the drive gear to increase the surface hardness of the gear, reducing the negative effects caused by unexpected force. Furthermore, the large-sized LT3000, LT4000-C, LT5000-C, and LT5000 XH gear models, which are expected to be subject to high loads, have newly adopted a high-strength pinion, which has a proven track record in Saltiga, etc., to ensure complete safety. did.
■ATD TYPE-L “Followability is different”
ATD TYPE-L maintains the characteristics of ATD that continues to work smoothly according to the pull of the fish, but further improves the initial response of the spinning reel. Tuning has been done with a focus on the smooth start required when using a light line, further reducing the load on the line, and making it possible to land in a short time without putting excessive stress on the fish.
(Size 5000 is carbon washer ATD specification)
(Size 5000 is carbon washer ATD specification)
■LC-ABS (Long Cast-ABS) “Going further”
While maintaining the concept of reducing contact resistance of ABSⅡ, by bringing the contact point forward, smoother line release is achieved. The effect of the ring part being pushed forward makes it difficult for the line to ride on the ring, resulting in an approximately 5% increase in flight distance and trouble-free performance over the conventional ABS II. This is the next generation ABS spool that truly realizes LC (=LONG CAST).
■Stopperless body “even lighter and trouble-free”
The body structure has been simplified by removing the stopper. The decision to remove the stopper, which is a route for water and foreign matter to enter, not only reduces weight and improves waterproof performance, but also minimizes the unfortunate occurrence of sudden troubles when dealing with large objects or in harsh environments required for 24CERTATE. keep it to
■Perfect line stopper
■EVA round light knob (installed on size 5000)
■Line roller (FC)
(Model without mag shield line roller)
■Line roller
(Normal) (Model equipped with mag shield line roller)
List of recommended fishing species by size
